The language of models

Lecture 12

John Zito

Duke University
STA 199 Spring 2025

2025-02-27

While you wait…

  • Go to your ae project in RStudio.

  • Make sure all of your changes up to this point are committed and pushed, i.e., there’s nothing left in your Git pane.

  • Click Pull to get today’s application exercise file: ae-09-modeling-fish.qmd.

  • Wait till the you’re prompted to work on the application exercise during class before editing the file.

You people are cute…

We can dream

Anyone want to argue?

Nailed it

Work on the ears please

Staaahp

No

…and also ugly

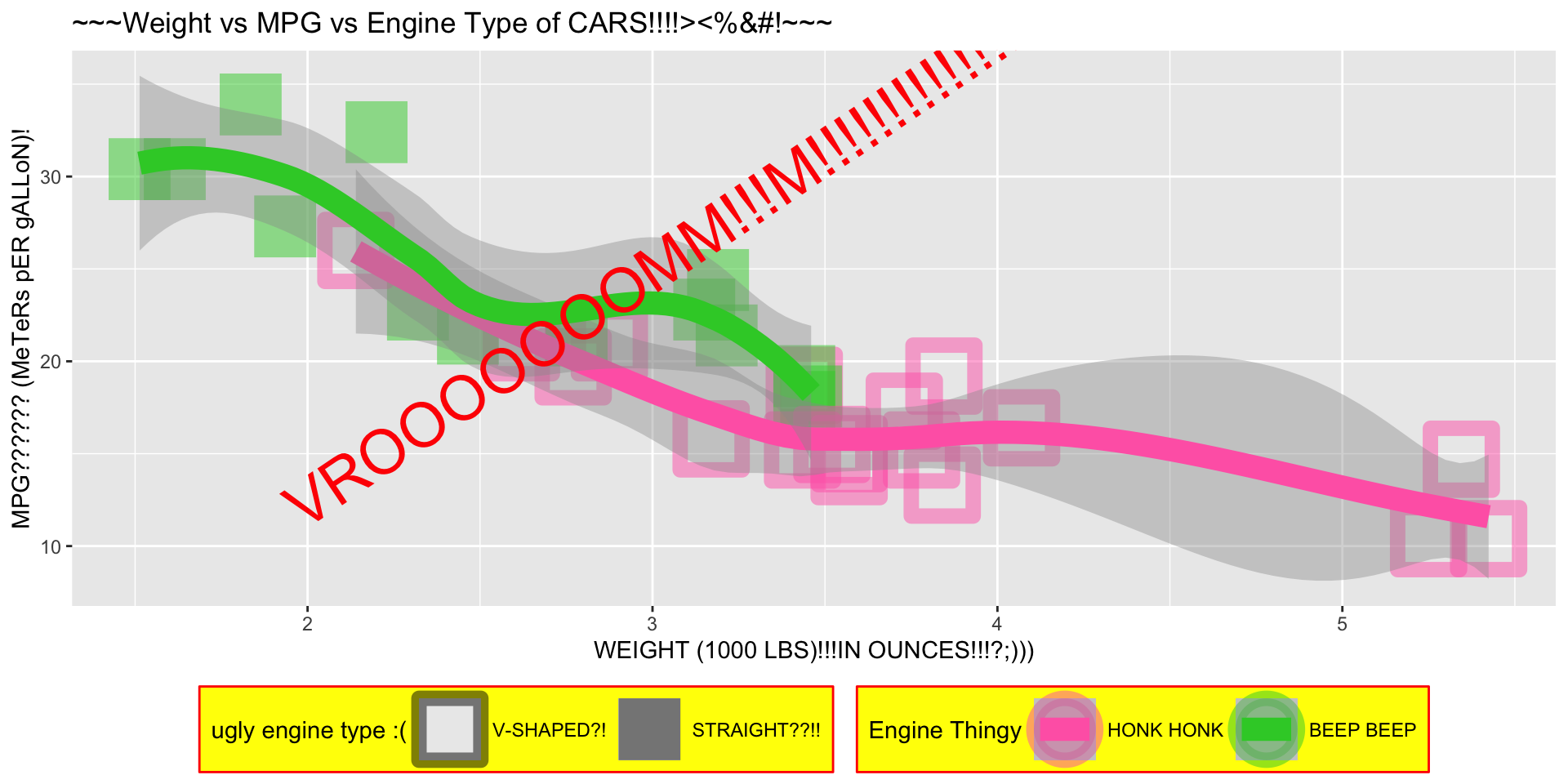

Third place: Alex Brady

ggplot(mtcars, aes(x = wt, y = mpg, shape = factor(vs), color = factor(vs))) +
  geom_point(size = 10, stroke = 5, alpha = 0.5) +
  geom_smooth(size = 5) +
  labs(
    x = "WEIGHT (1000 LBS)!!!IN OUNCES!!!?;)))",
    y = "MPG?????? (MeTeRs pER gALLoN)!",
    title = "~~~Weight vs MPG vs Engine Type of CARS!!!!><%&#!~~~",
    shape = "ugly engine type :(",
    color = "Engine Thingy"
  ) +
  scale_shape_manual(
    values = c(0, 15),
    labels = c("V-SHAPED?!", "STRAIGHT??!!")
  ) +
  scale_color_manual(
    values = c("hotpink", "limegreen"),
    labels = c("HONK HONK", "BEEP BEEP")
  ) +
    annotate("text", x = 3, y = 25, label = "VROOOOOOOMM!!!M!!!!!!!!!!!!!!",
             color = "red", size = 10, angle = 34) +
  theme(
       legend.position = "bottom",
       legend.background = element_rect(fill = "yellow", color = "red"))

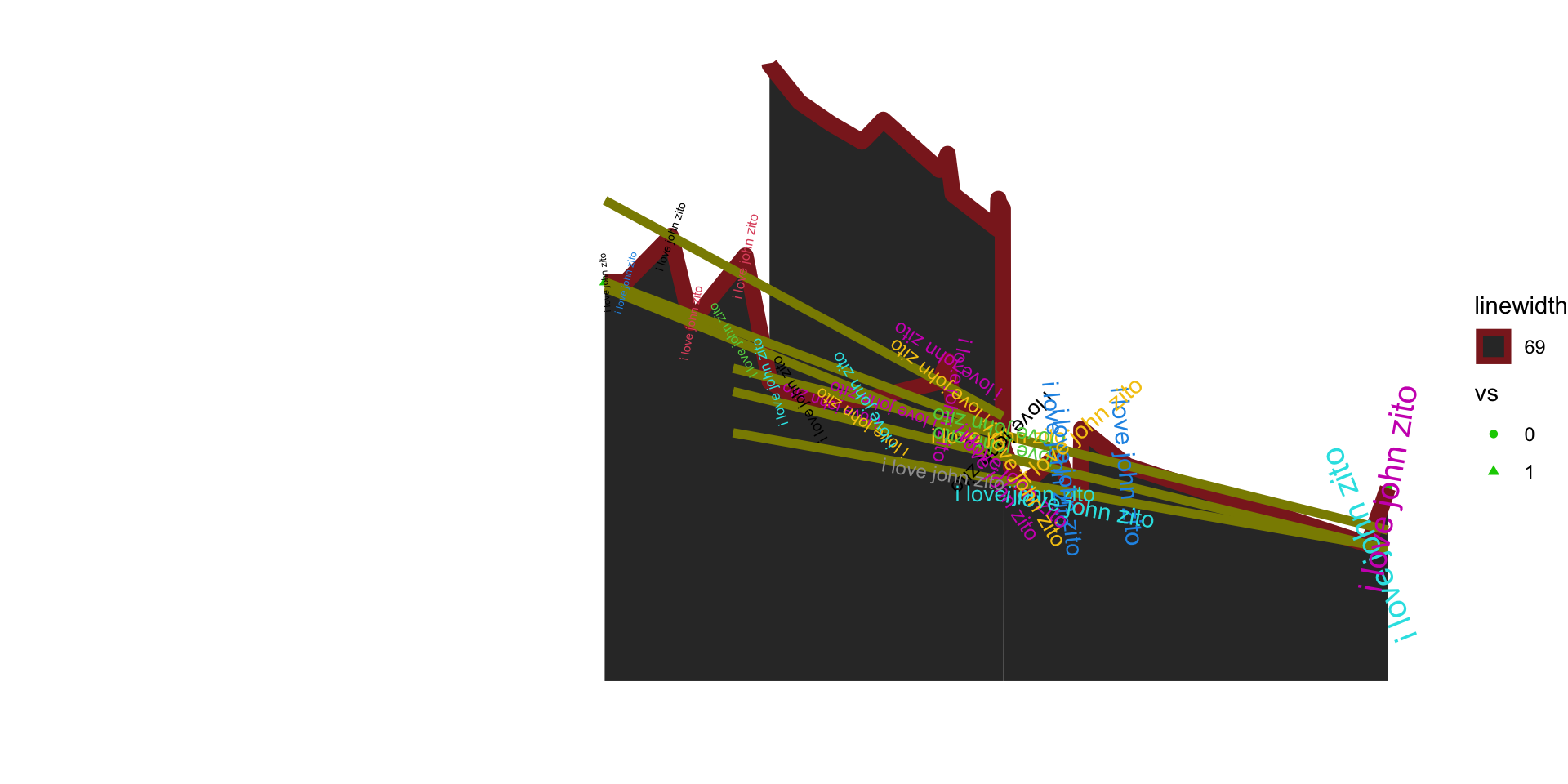

Second place: Jack Yi

new_mtcars <- mtcars |>
  mutate(
    am = as.character(am),
    vs = as.character(vs)
  )
ggplot(new_mtcars, aes(x = wt,
                       y = mpg,
                       shape = vs,
                       linewidth = 69,
                       label = "i love john zito"
                       )
  ) +
  xlim(-1.1231, 5.384781472) +
  ylim(-5.128312, 49.172836) +
  geom_point(color = "green3") +
  geom_line(color = "pink3") +
  geom_area(color = "brown4") +
  geom_quantile(linewidth = 2, color = "yellow4") +
  geom_text(
    size = new_mtcars$wt,
    angle = new_mtcars$disp,
    color = new_mtcars$hp
  ) +
  labs(
    x = "Weight (1000 lbs)",
    y = "Miles / gallon",
  ) +
  theme_void()

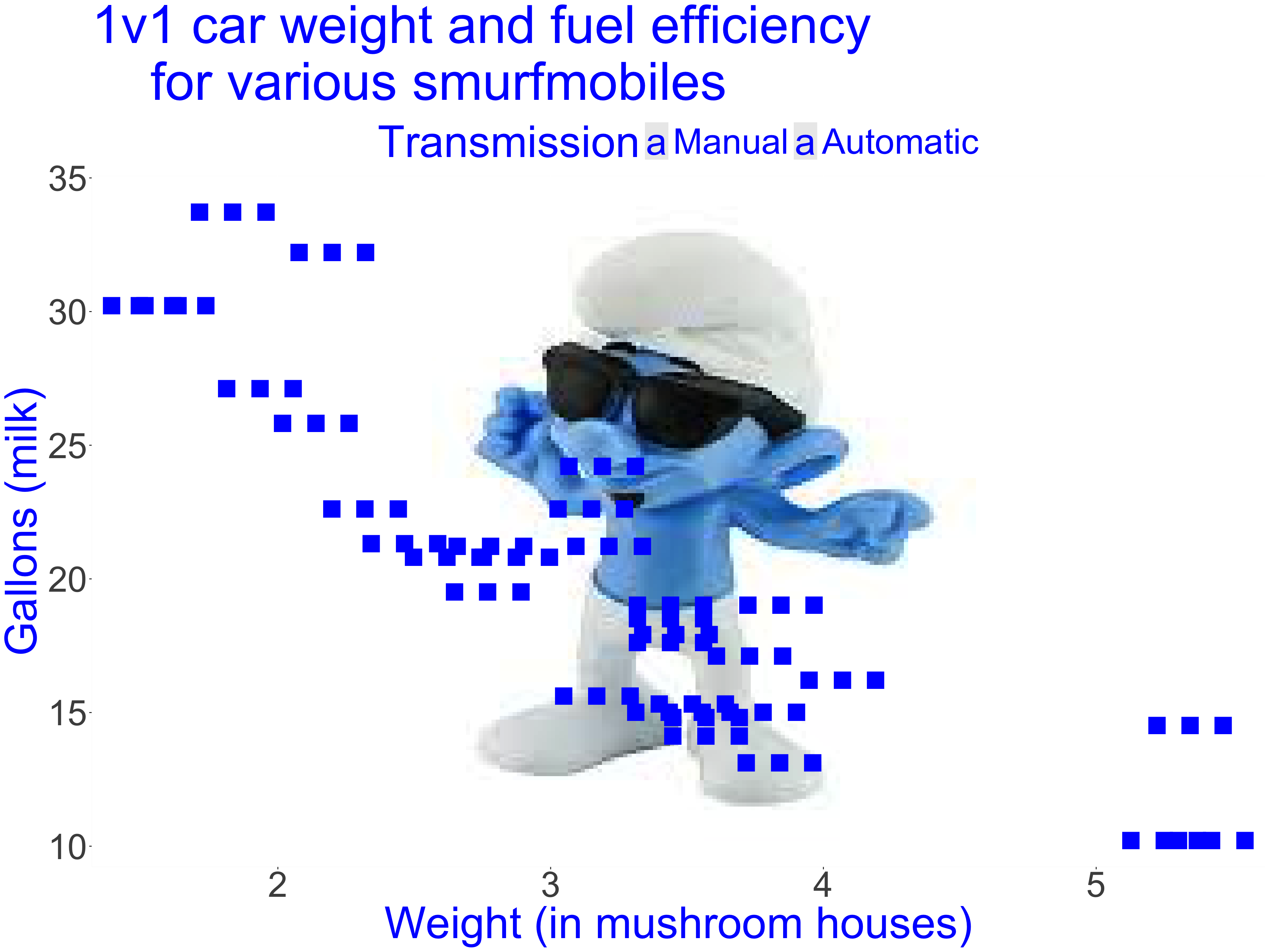

First place: Jules Gates

img <- readJPEG("images/12/images.jpeg")

fixed_mtcars <- mtcars |>
  mutate(
    am = factor(am, labels = c("Automatic", "Manual")),
    am = fct_relevel(am, "Manual", "Automatic"),
    vs = factor(vs, labels = c("V-shaped", "Straight")),
    signs_m = ifelse(vs == "V-shaped", "■ ■ ■", "■ ■ ■")
  )

ggplot(fixed_mtcars, aes(x = wt, y = mpg, color = am)) +
  annotation_raster(img, xmin = -Inf, xmax = Inf, ymin = -Inf, ymax = Inf) +
  geom_text(aes(label = signs_m), size = 15) +
  labs(
    title = "1v1 car weight and fuel efficiency
    for various smurfmobiles",
    x = "Weight (in mushroom houses)",
    y = "Gallons (milk)",
    color = "Transmission"
  ) +
  scale_color_manual(
    values = c("Automatic" = "blue", "Manual" = "blue")
  )  +
  theme(
    legend.position = "top",
    plot.background = element_rect(fill = "transparent", color = NA),
    text = element_text(size = 50, color = "blue")
  )

Prediction / classification

Goals

  • What is a model?
  • Why do we model?
  • What is correlation?

Let’s drive a Tesla!

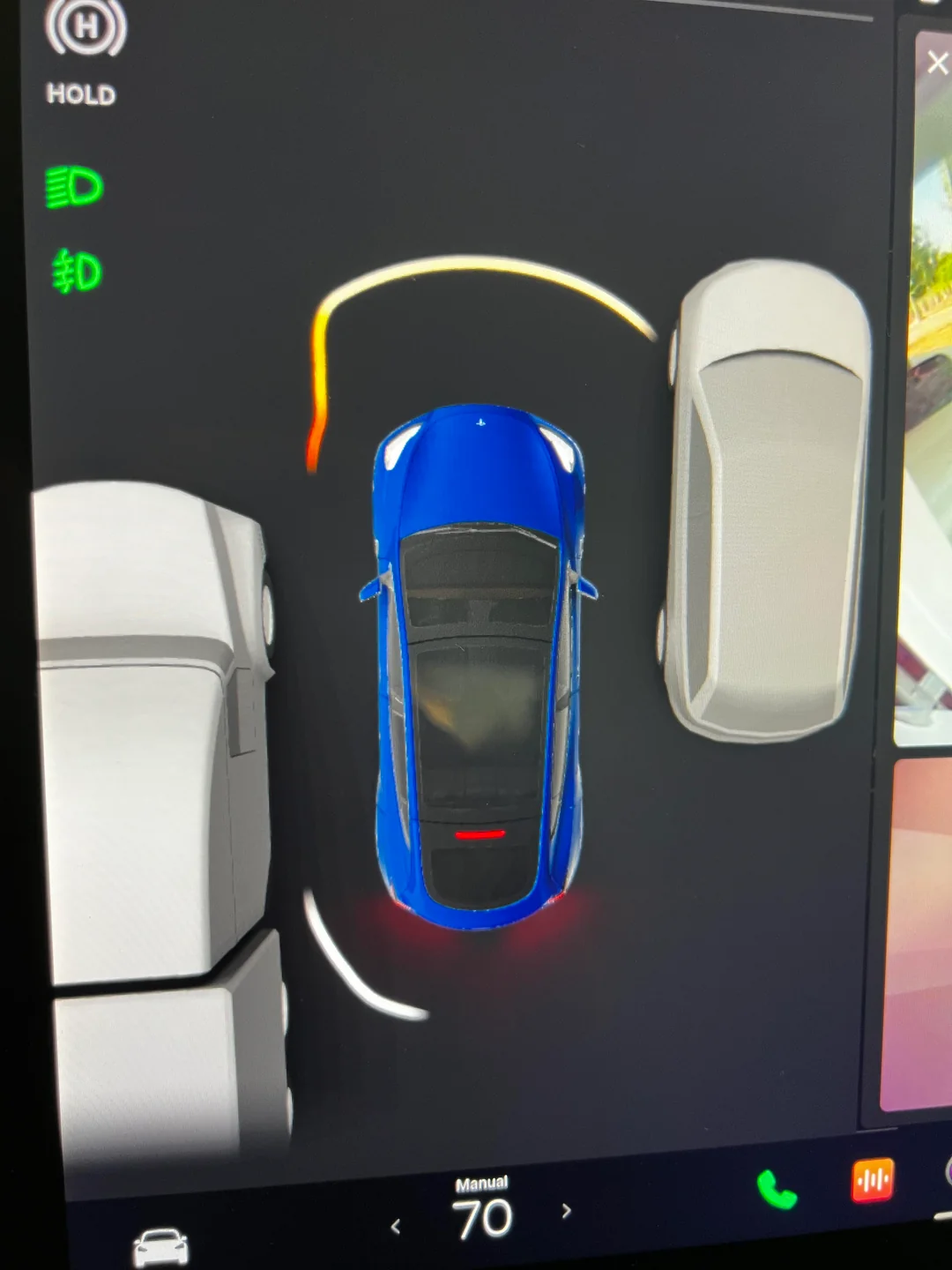

Semi or garage?

i love how Tesla thinks the wall in my garage is a semi. 😅

Semi or garage?

New owner here. Just parked in my garage. Tesla thinks I crashed onto a semi.

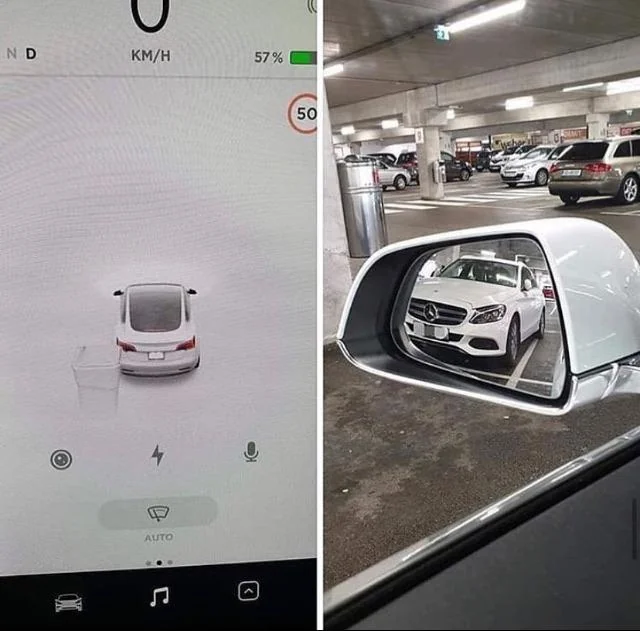

Car or trash?

Tesla calls Mercedes trash

Description

Leisure, commute, physical activity and BP

Relation Between Leisure Time, Commuting, and Occupational Physical Activity With Blood Pressure in 125,402 Adults: The Lifelines Cohort

Byambasukh, Oyuntugs, Harold Snieder, and Eva Corpeleijn. “Relation between leisure time, commuting, and occupational physical activity with blood pressure in 125 402 adults: the lifelines cohort.” Journal of the American Heart Association 9.4 (2020): e014313.

Leisure, commute, physical activity and BP

Background: Whether all domains of daily‐life moderate‐to‐vigorous physical activity (MVPA) are associated with lower blood pressure (BP) and how this association depends on age and body mass index remains unclear.

Methods and Results: In the population‐based Lifelines cohort (N=125,402), MVPA was assessed by the Short Questionnaire to Assess Health‐Enhancing Physical Activity, a validated questionnaire in different domains such as commuting, leisure‐time, and occupational PA. BP was assessed using the last 3 of 10 measurements after 10 minutes’ rest in the supine position. Hypertension was defined as systolic BP ≥140 mm Hg and/or diastolic BP ≥90 mm Hg and/or use of antihypertensives. In regression analysis, higher commuting and leisure‐time but not occupational MVPA related to lower BP and lower hypertension risk. Commuting‐and‐leisure‐time MVPA was associated with BP in a dose‐dependent manner. β Coefficients (95% CI) from linear regression analyses were −1.64 (−2.03 to −1.24), −2.29 (−2.68 to −1.90), and finally −2.90 (−3.29 to −2.50) mm Hg systolic BP for the low, middle, and highest tertile of MVPA compared with “No MVPA” as the reference group after adjusting for age, sex, education, smoking and alcohol use. Further adjustment for body mass index attenuated the associations by 30% to 50%, but more MVPA remained significantly associated with lower BP and lower risk of hypertension. This association was age dependent. β Coefficients (95% CI) for the highest tertiles of commuting‐and‐leisure‐time MVPA were −1.67 (−2.20 to −1.15), −3.39 (−3.94 to −2.82) and −4.64 (−6.15 to −3.14) mm Hg systolic BP in adults <40, 40 to 60, and >60 years, respectively.

Conclusions: Higher commuting and leisure‐time but not occupational MVPA were significantly associated with lower BP and lower hypertension risk at all ages, but these associations were stronger in older adults.

Modeling

Modeling cars

  • What is the relationship between cars’ weights and their mileage?
  • What is your best guess for a car’s MPG that weighs 3,500 pounds?

Modelling cars

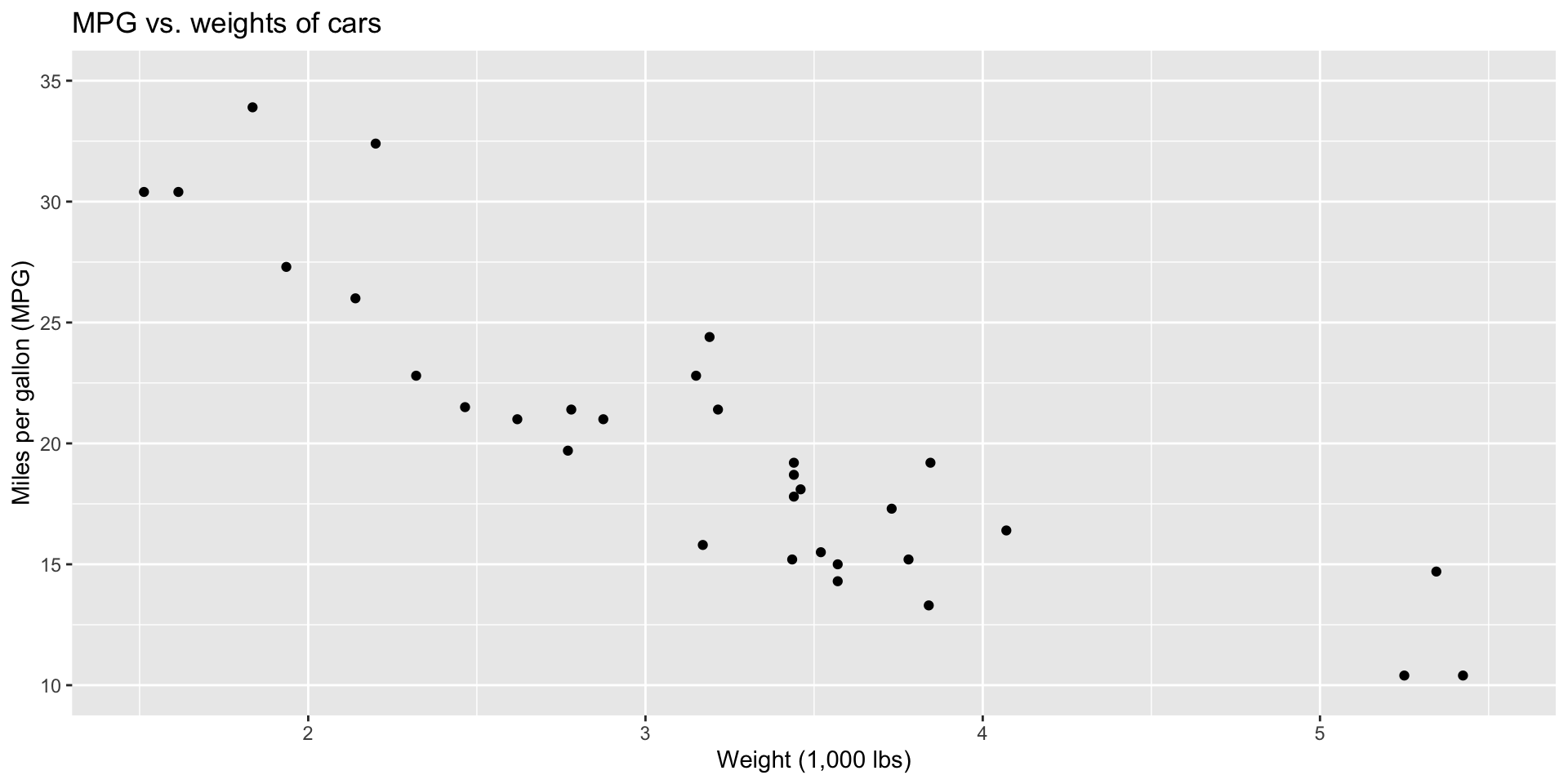

Describe: What is the relationship between cars’ weights and their mileage?

Modelling cars

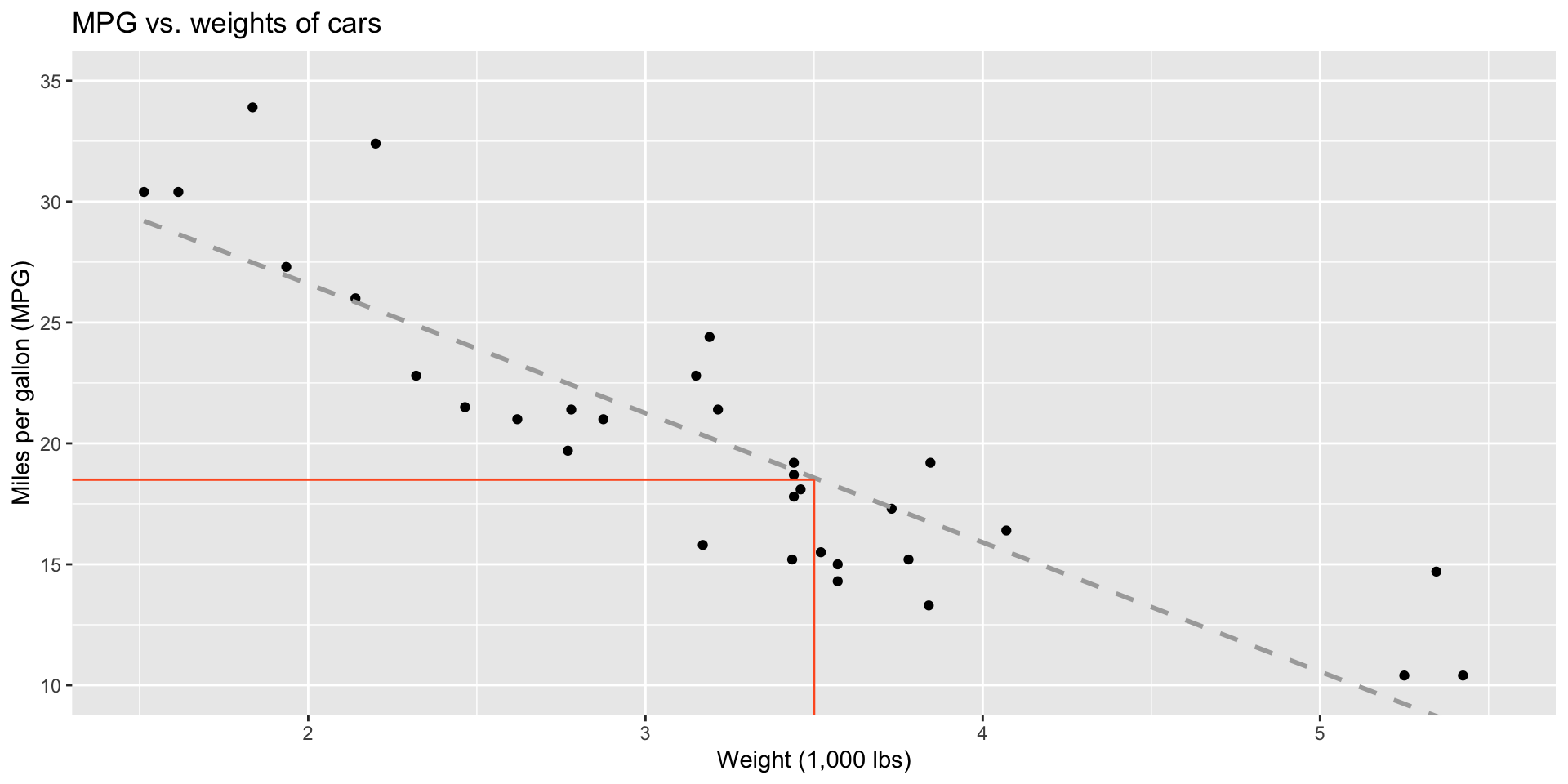

Predict: What is your best guess for a car’s MPG that weighs 3,500 pounds?

Modelling

  • Use models to explain the relationship between variables and to make predictions
  • For now we will focus on linear models (but there are many many other types of models too!)

Modelling vocabulary

  • Predictor (explanatory variable)
  • Outcome (response variable)
  • Regression line
    • Slope
    • Intercept
  • Correlation

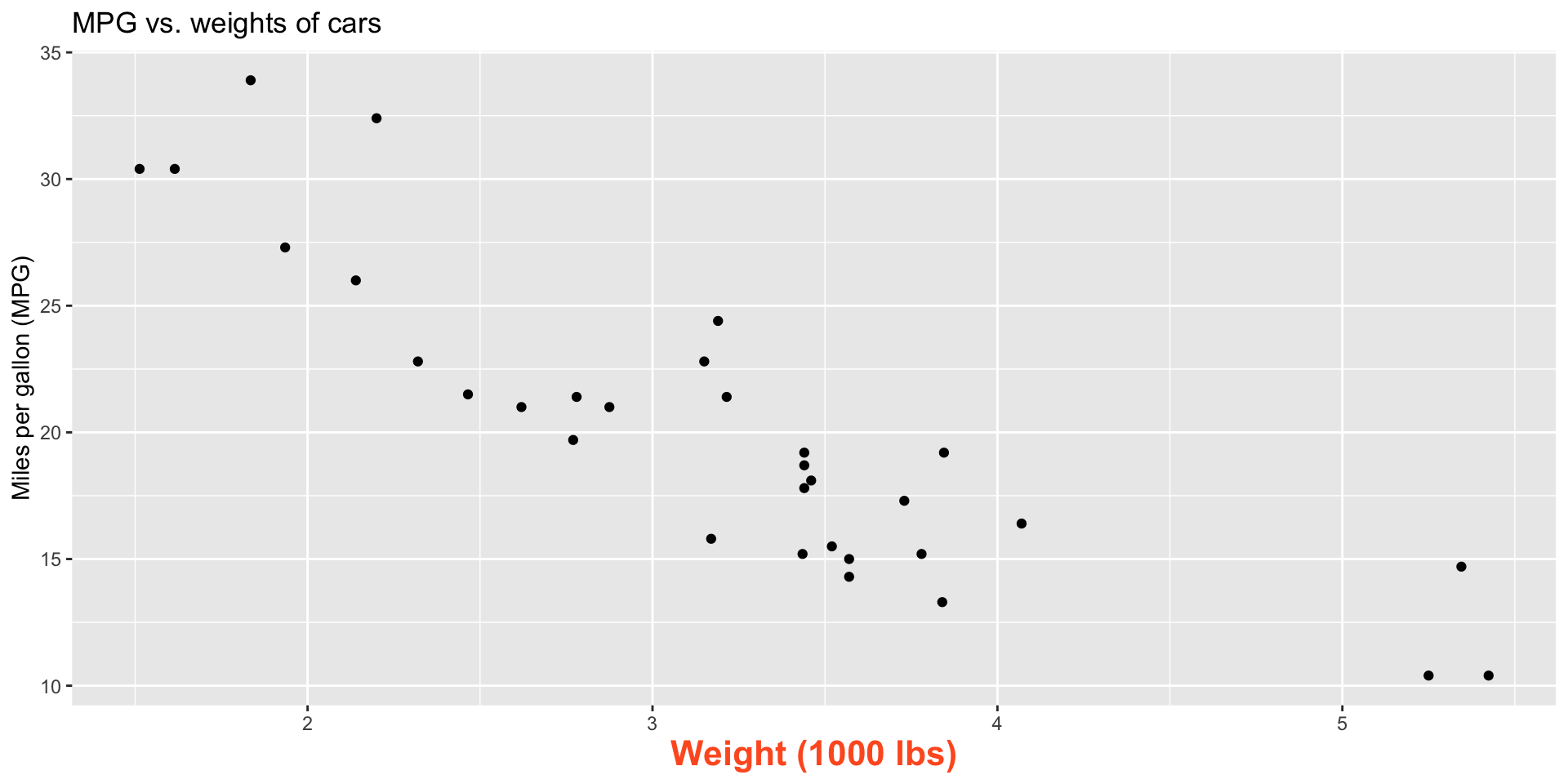

Predictor (explanatory variable)

mpg wt
21 2.62
21 2.875
22.8 2.32
21.4 3.215
18.7 3.44
18.1 3.46
... ...

Outcome (response variable)

mpg wt
21 2.62
21 2.875
22.8 2.32
21.4 3.215
18.7 3.44
18.1 3.46
... ...

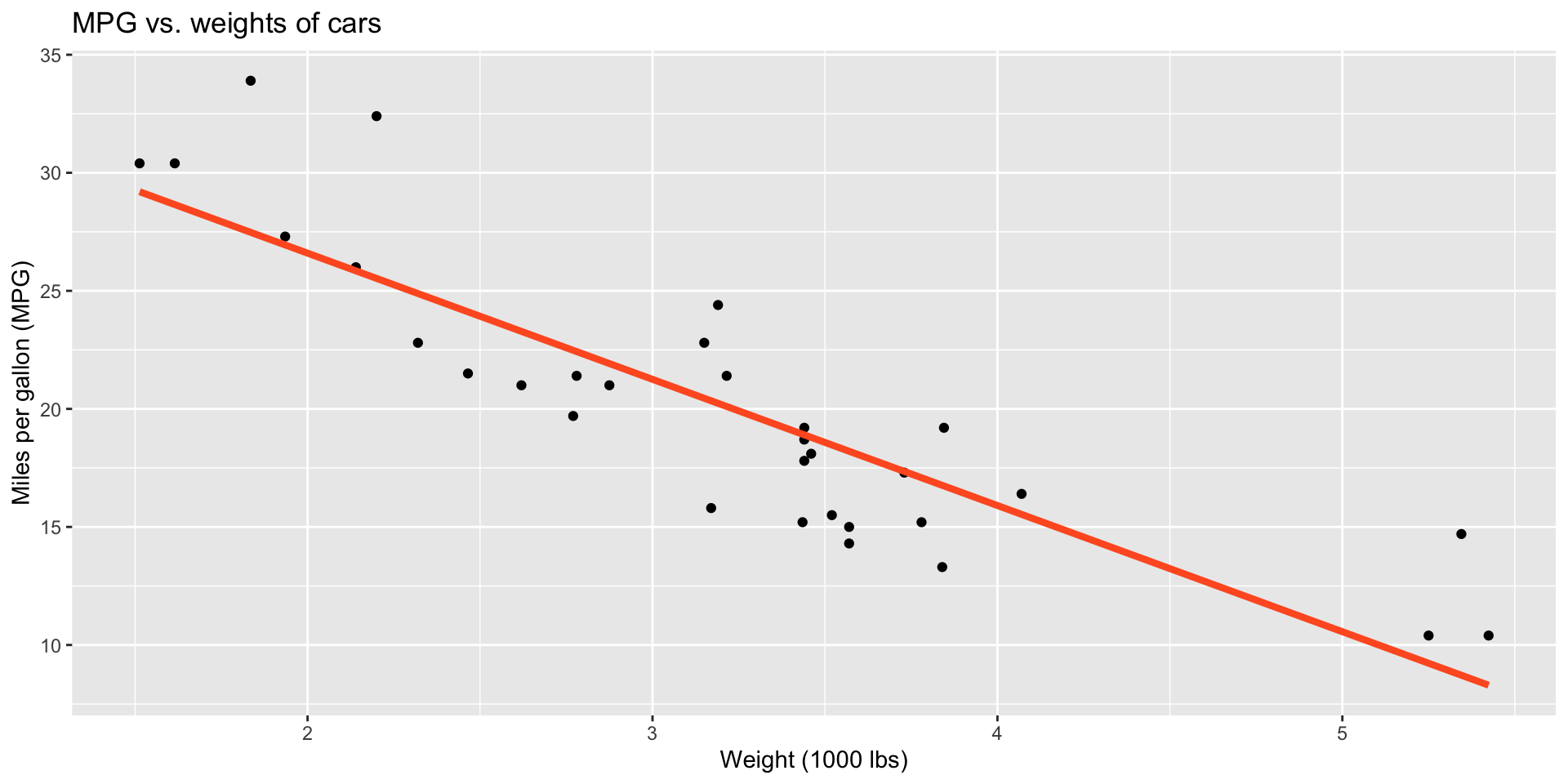

Regression line

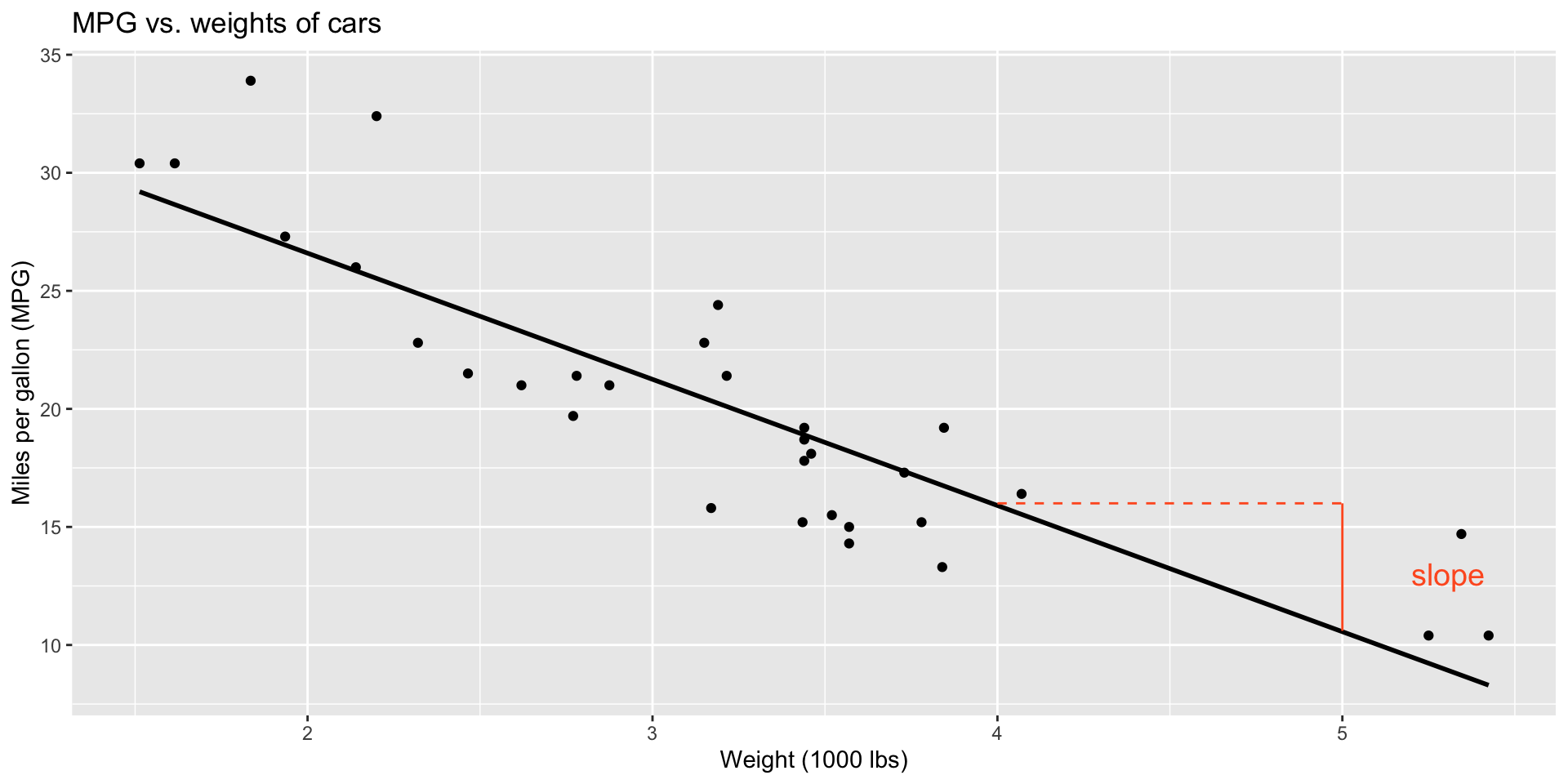

Regression line: slope

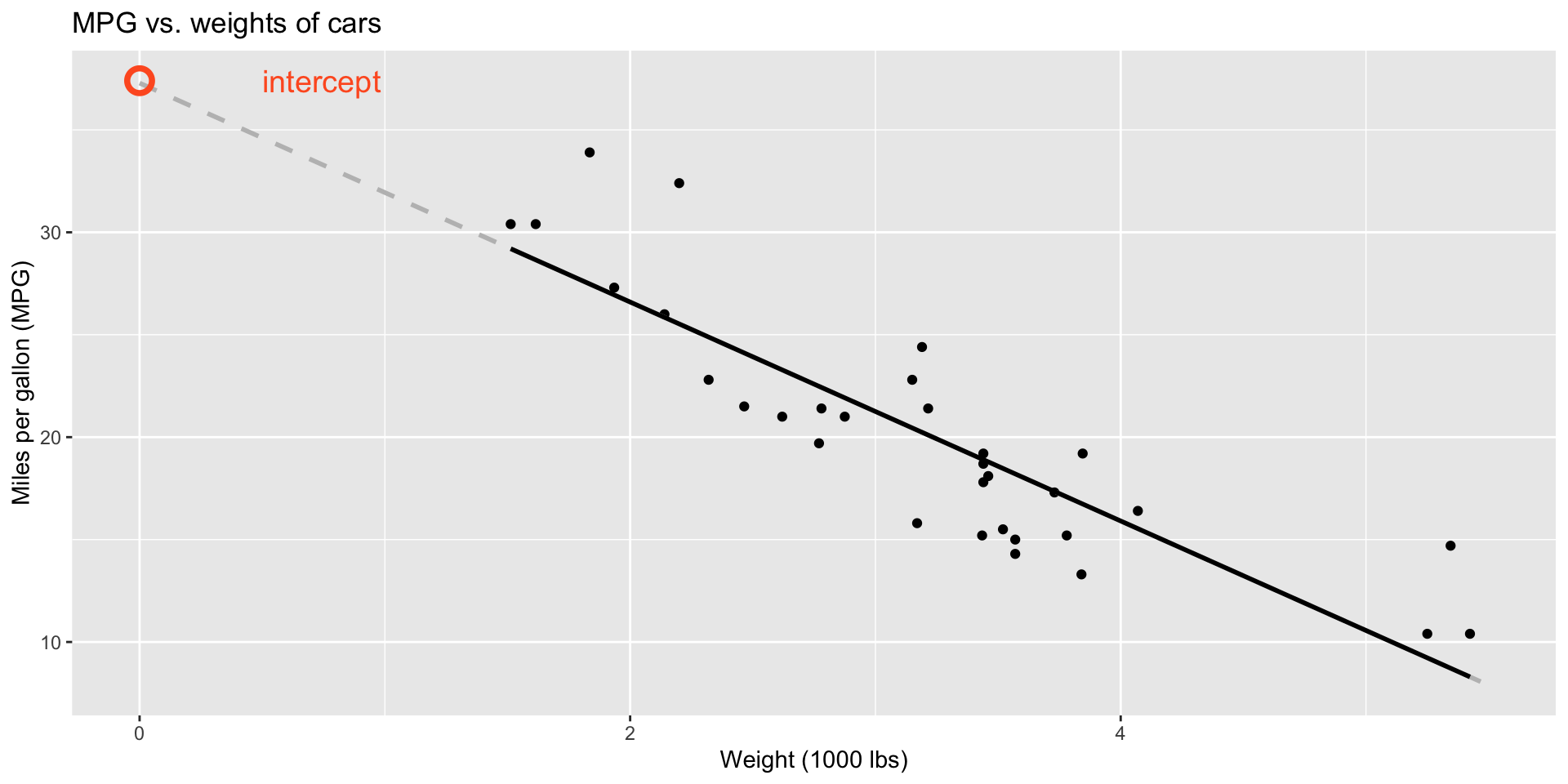

Regression line: intercept

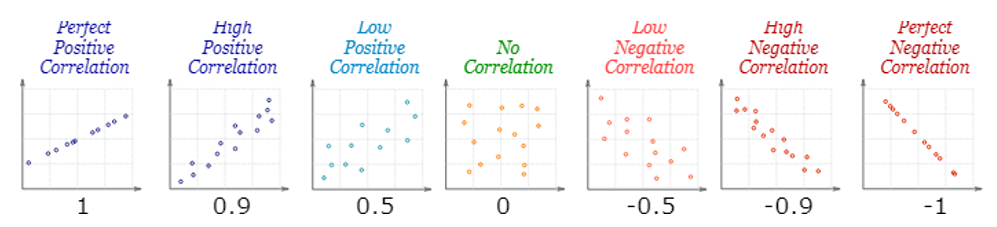

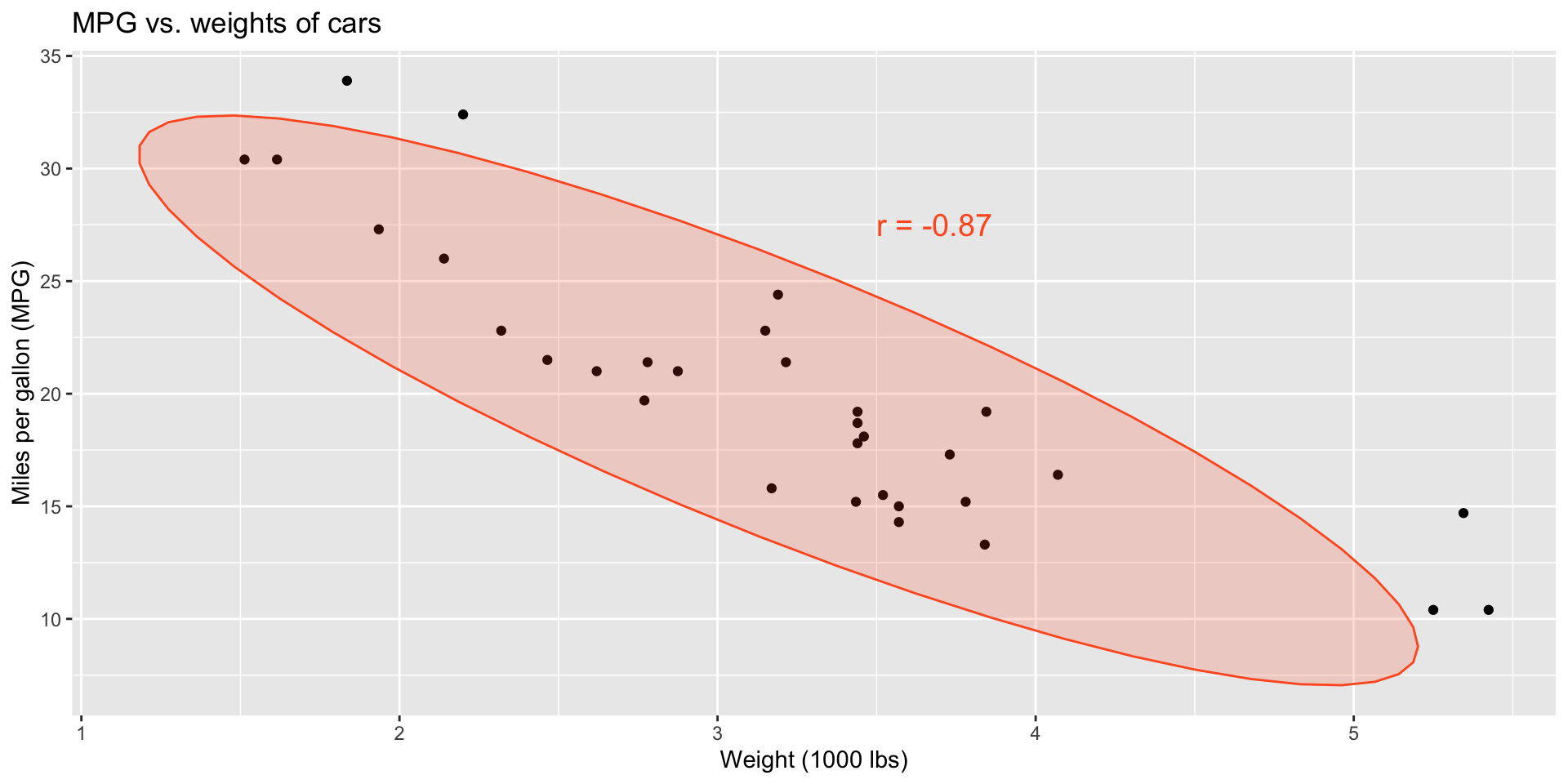

Correlation

Correlation

  • Ranges between -1 and 1.
  • Same sign as the slope.

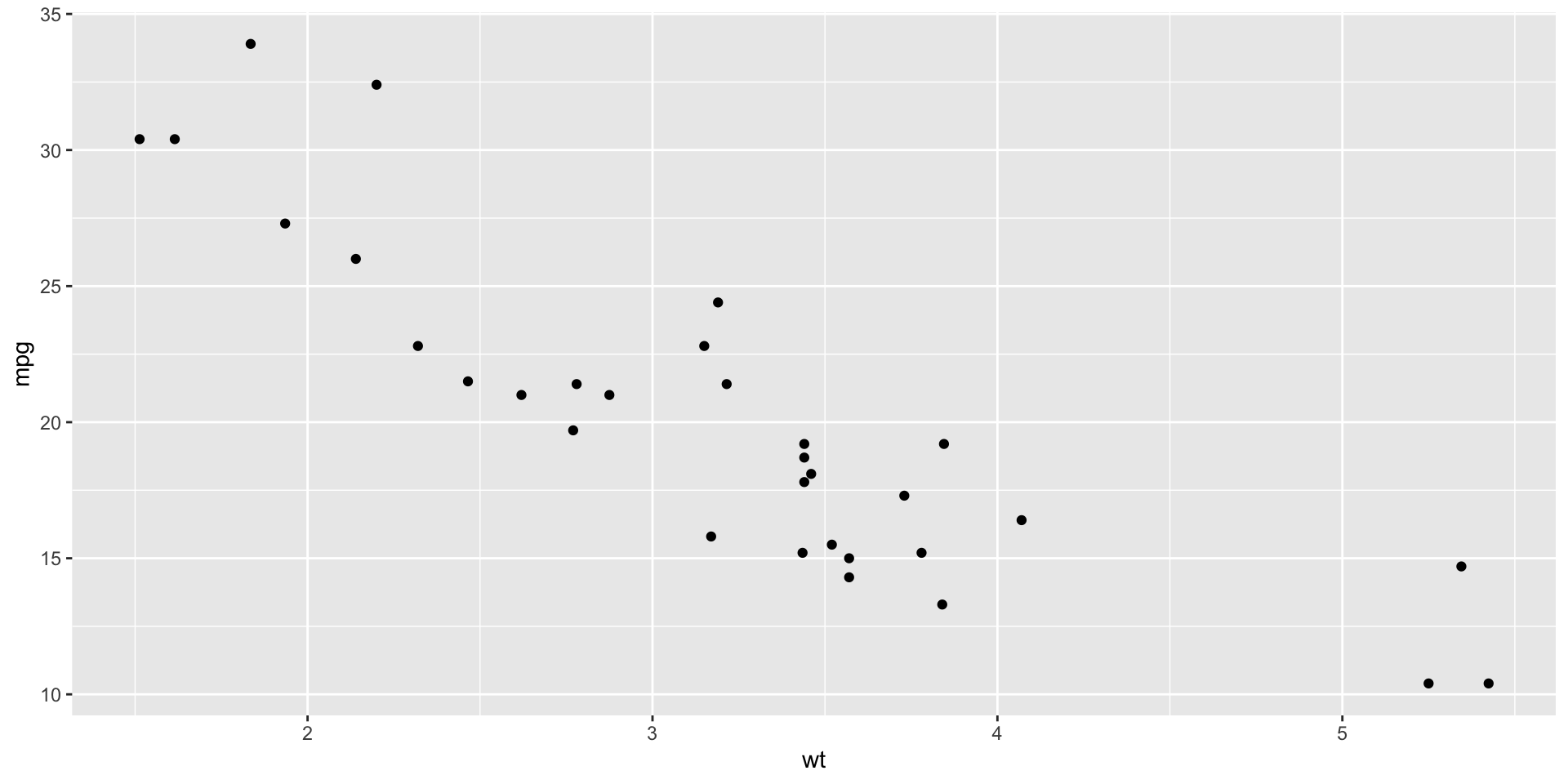

Visualizing the model

ggplot(mtcars, aes(x = wt, y = mpg)) +
  geom_point()

Visualizing the model

ggplot(mtcars, aes(x = wt, y = mpg)) +
  geom_point() +
  geom_smooth()

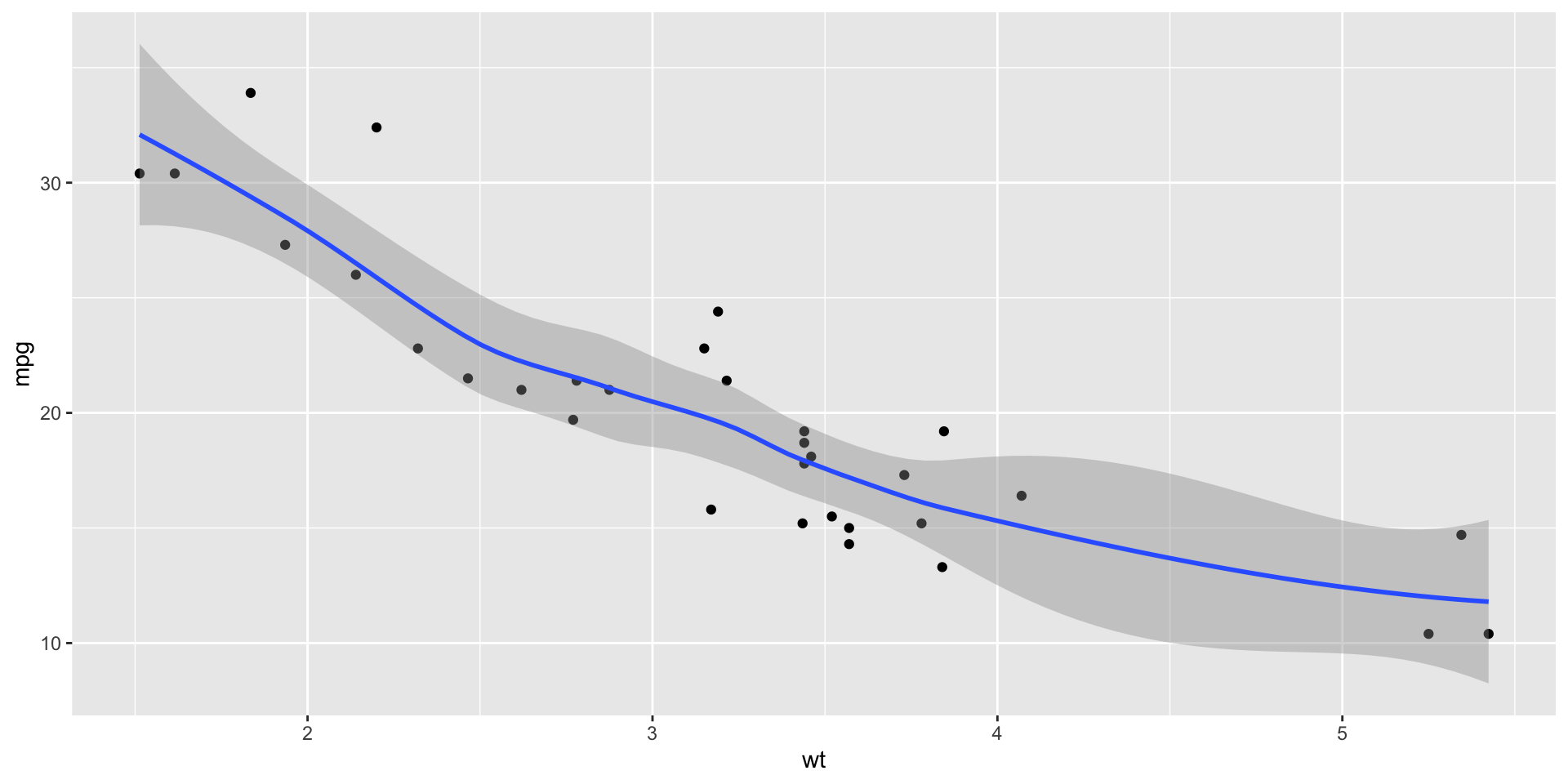

Visualizing the model

ggplot(mtcars, aes(x = wt, y = mpg)) +
  geom_point() +
  geom_smooth(method = "loess")

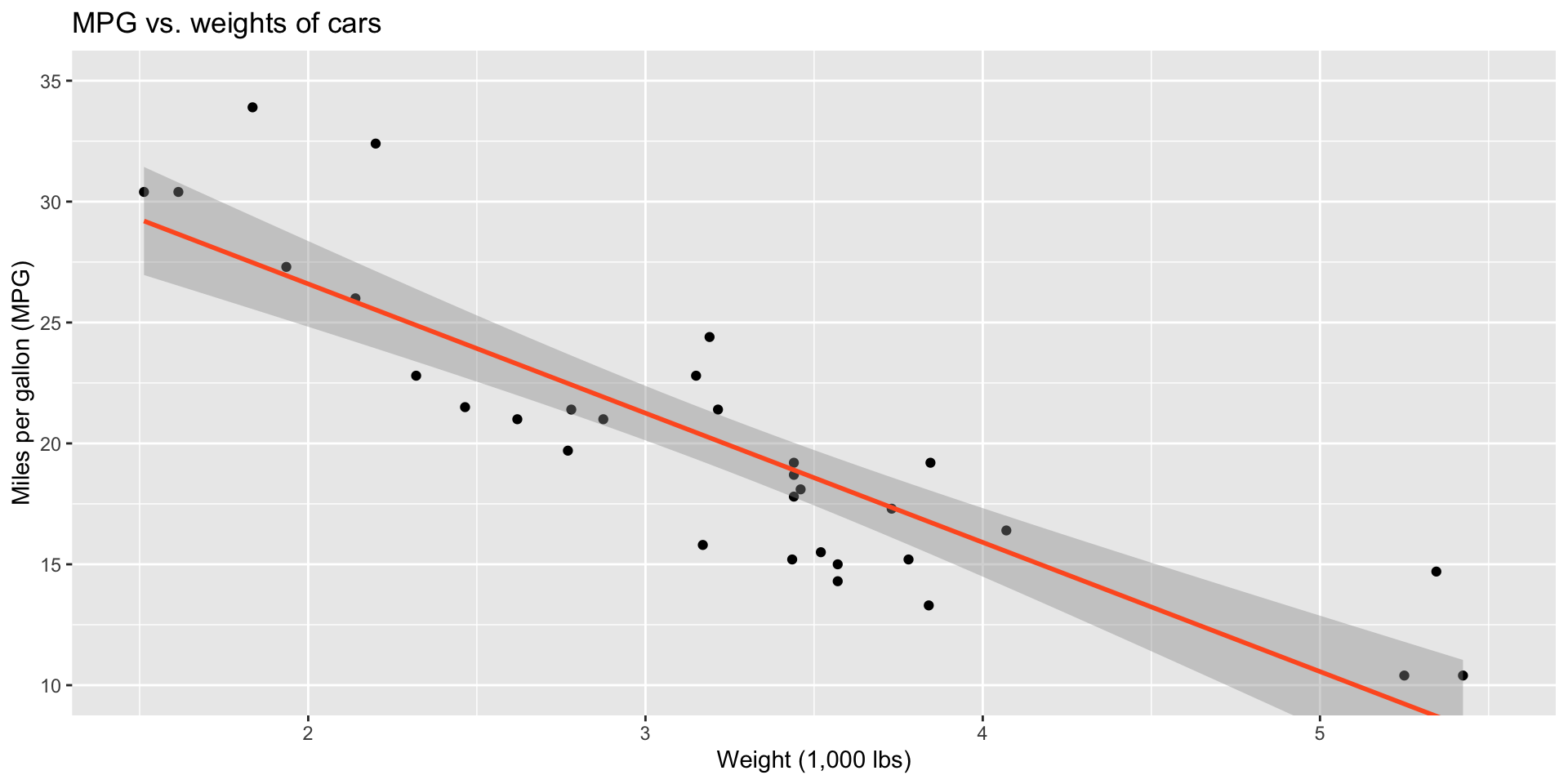

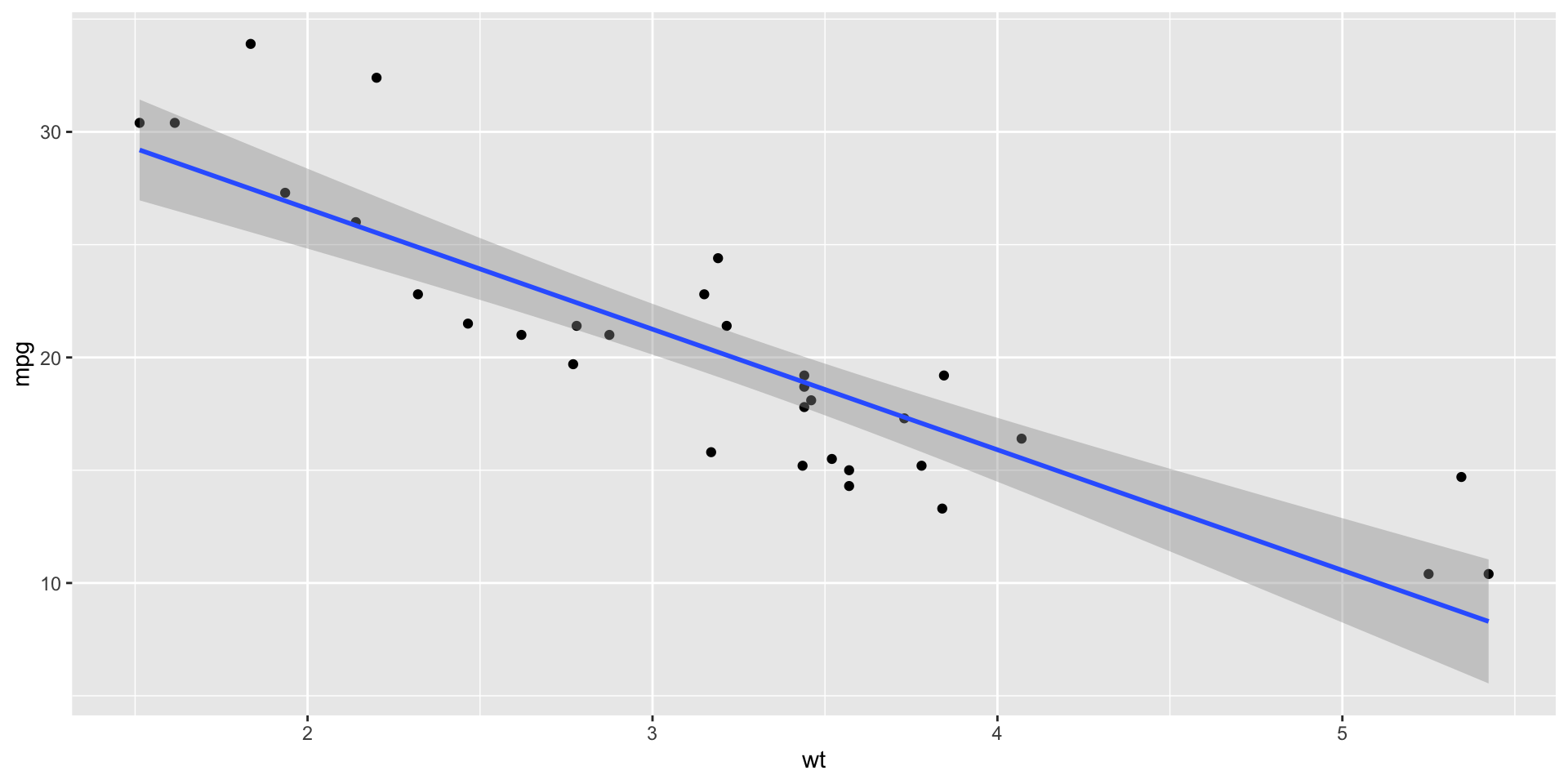

Visualizing the model

ggplot(mtcars, aes(x = wt, y = mpg)) +
  geom_point() +
  geom_smooth(method = "lm")

Application exercise

ae-09-modeling-fish

  • Go to your ae project in RStudio.

  • If you haven’t yet done so, make sure all of your changes up to this point are committed and pushed, i.e., there’s nothing left in your Git pane.

  • If you haven’t yet done so, click Pull to get today’s application exercise file: ae-09-modeling-fish.qmd.

  • Work through the application exercise in class, and render, commit, and push your edits.
