Data science communication

Lecture 23

John Zito

Duke University
STA 199 Spring 2025

2025-04-17

While you wait

  • Go to your ae project in RStudio.

  • Make sure all of your changes up to this point are committed and pushed, i.e., there’s nothing left in your Git pane.

  • Click Pull to get today’s application exercise file: ae-19-effective-dataviz.qmd.

  • Wait until you’re prompted to work on the application exercise during class before editing the file.

Telling a story

Setup

library(tidyverse)
library(tidymodels)
library(ggrepel)
library(ggthemes)
library(palmerpenguins)

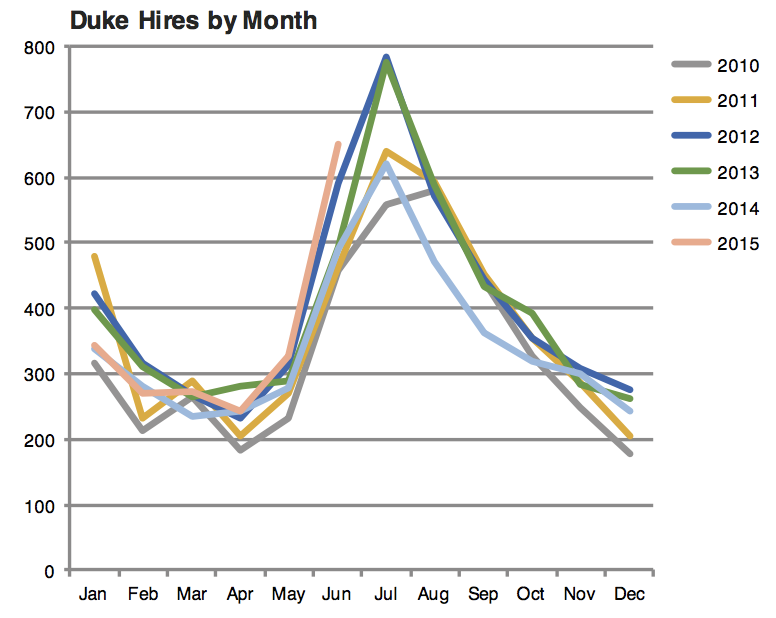

Multiple ways of telling a story

  • Sequential reveal: Motivation, then resolution

  • Instant reveal: Resolution, and hidden in it motivation

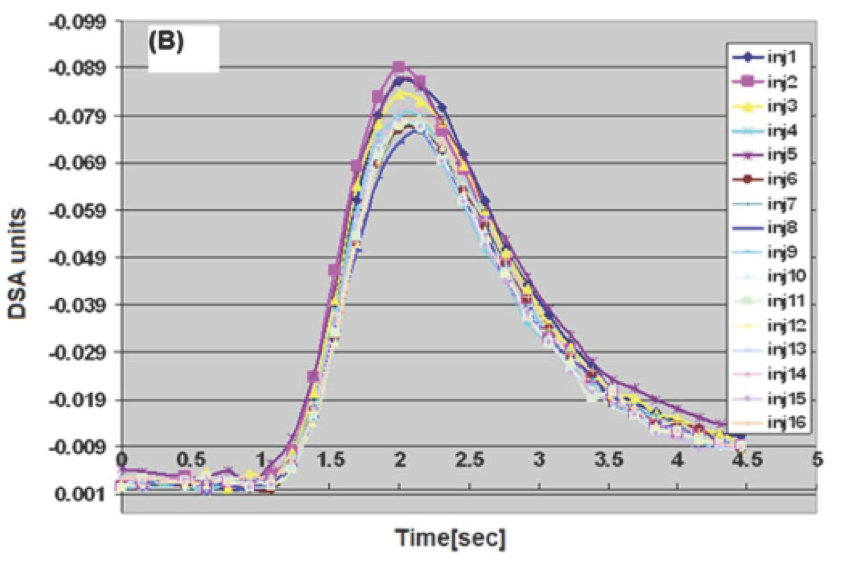

Simplicity vs. complexity

When you’re trying to show too much data at once you may end up not showing anything.

  • Never assume your audience can rapidly process complex visual displays

  • Don’t add variables to your plot that are tangential to your story

  • Don’t jump straight to a highly complex figure; first show an easily digestible subset (e.g., show one facet first)

  • Aim for memorable, but clear

Project note: Make sure to leave time to iterate on your plots after you practice your presentation. If certain plots or outputs are getting too wordy to explain, take time to simplify them!

Consistency vs. repetitiveness

Be consistent but don’t be repetitive.

  • Use consistent features throughout plots (e.g., same color represents same level on all plots)

  • Aim to use a different type of summary or visualization for each distinct analysis

Project note: If possible, ask a friend who is not in the class to listen to your presentation and then ask them what they remember. Then, ask yourself: is that what you wanted them to remember?

Your project plans

How are you telling your story?

  1. Sequential reveal

  2. Instant reveal

  3. Our approach doesn’t fit either of these paradigms

  4. No idea

Designing effective visualizations

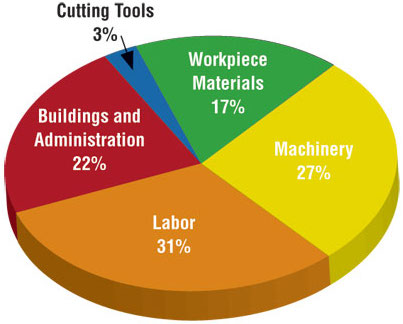

Data

d <- tribble(
  ~category,                     ~value,
  "Cutting tools"                , 0.03,
  "Buildings and administration" , 0.22,
  "Labor"                        , 0.31,
  "Machinery"                    , 0.27,
  "Workplace materials"          , 0.17
)
d
# A tibble: 5 × 2
  category                     value
  <chr>                        <dbl>
1 Cutting tools                 0.03
2 Buildings and administration  0.22
3 Labor                         0.31
4 Machinery                     0.27
5 Workplace materials           0.17

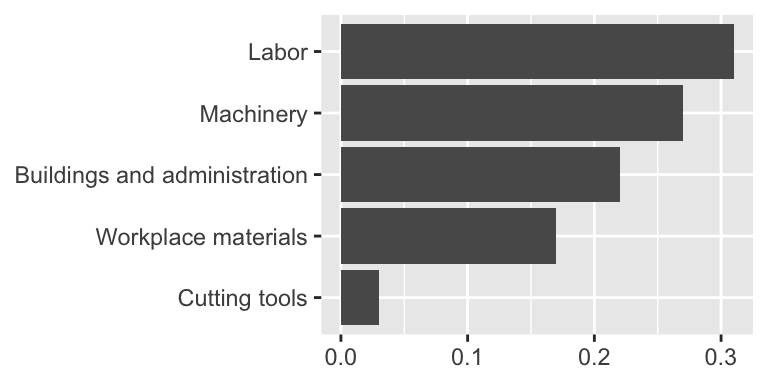

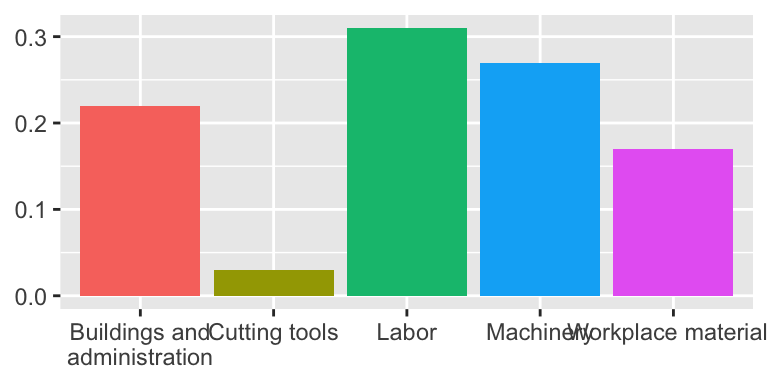

Keep it simple

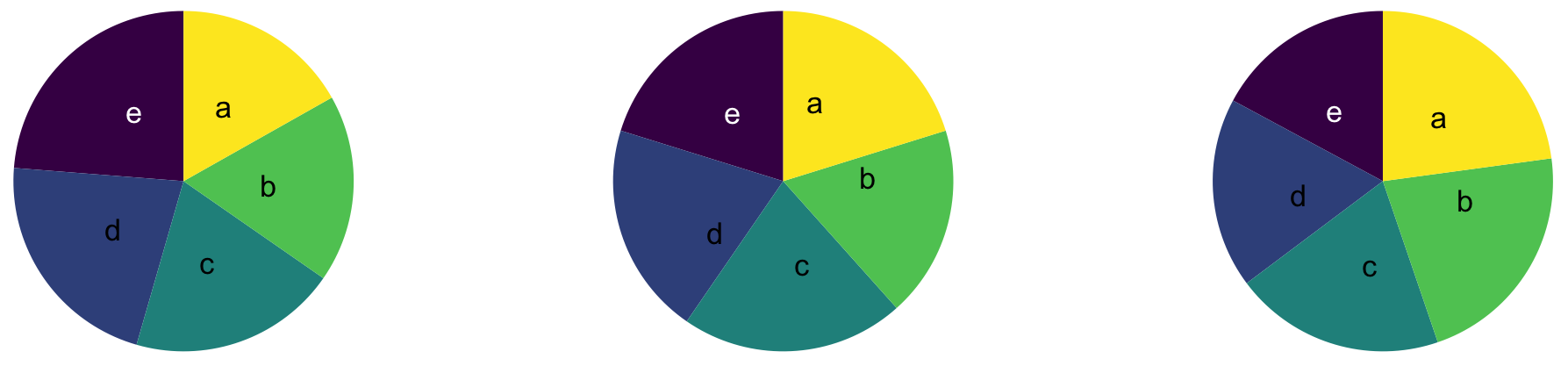

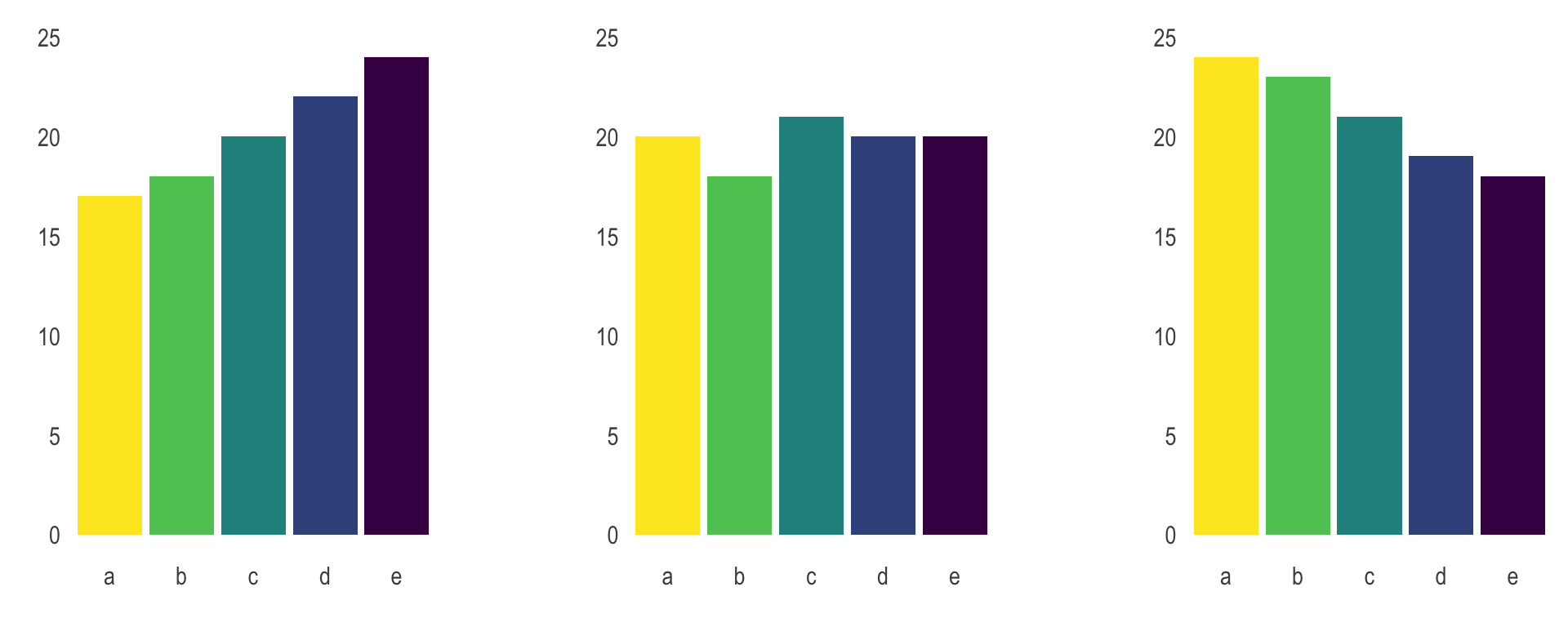

Judging relative area

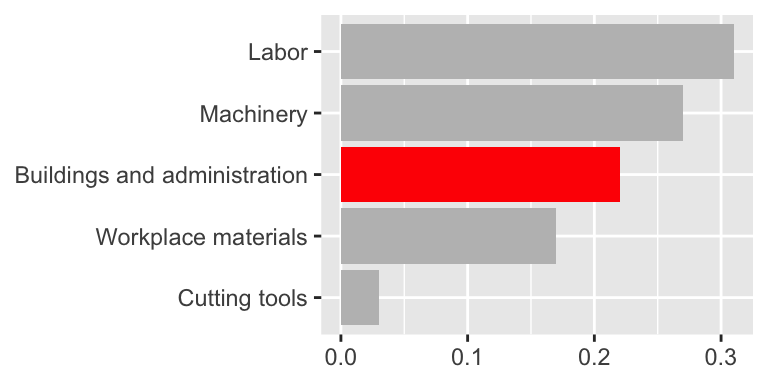

Use color to draw attention

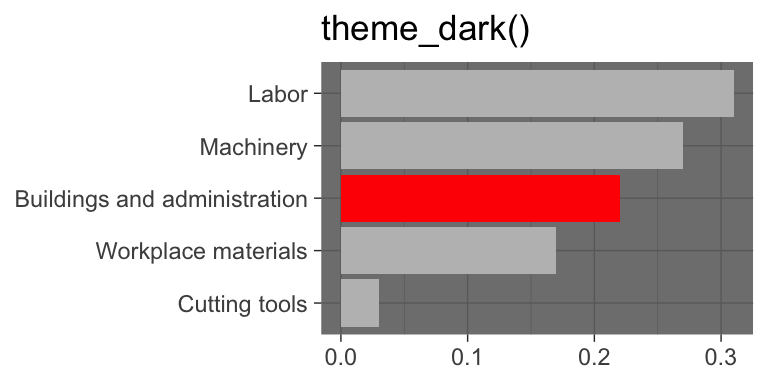

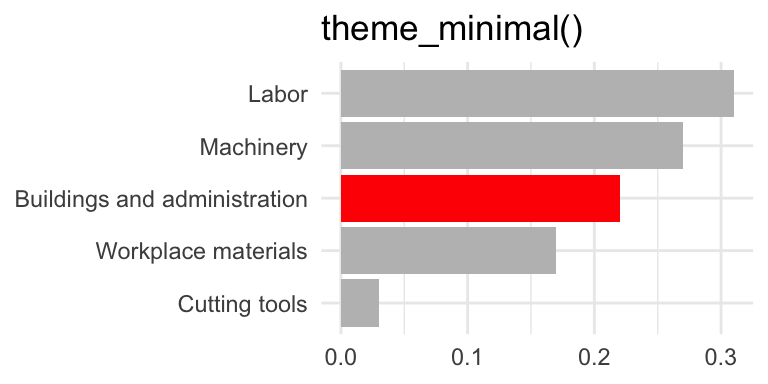

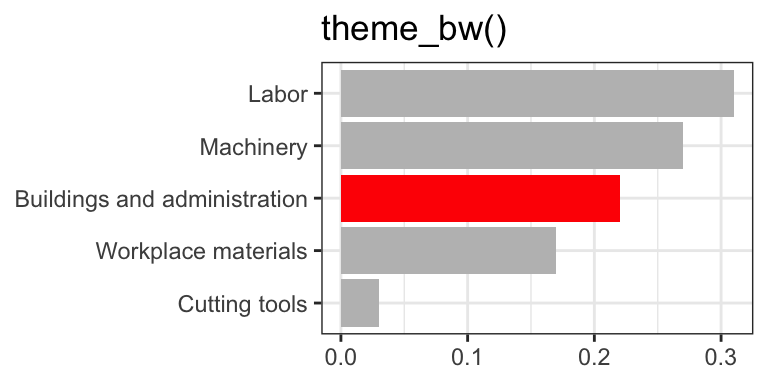

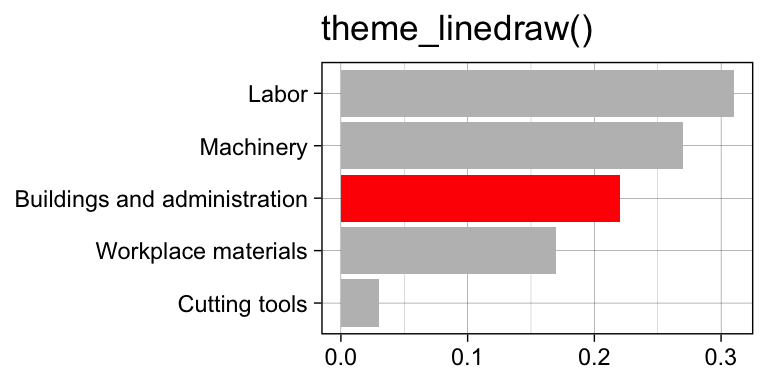

Play with themes for a non-standard look

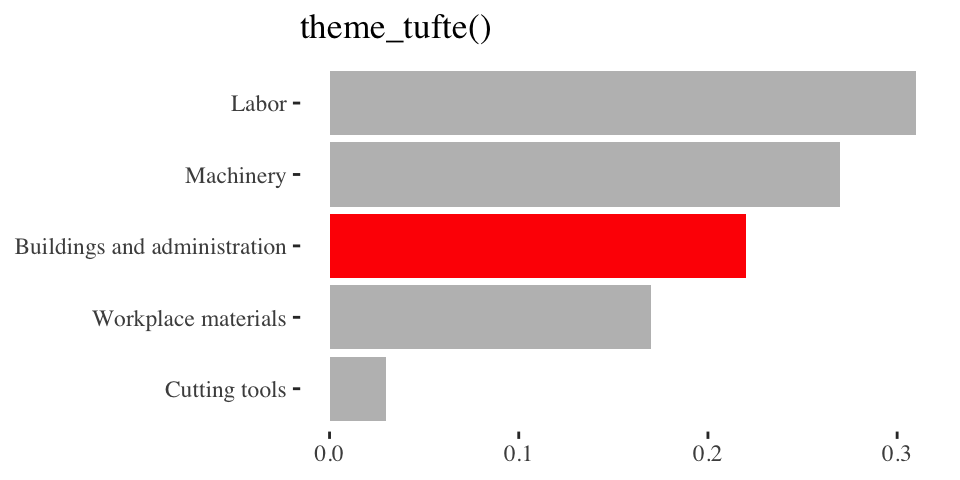

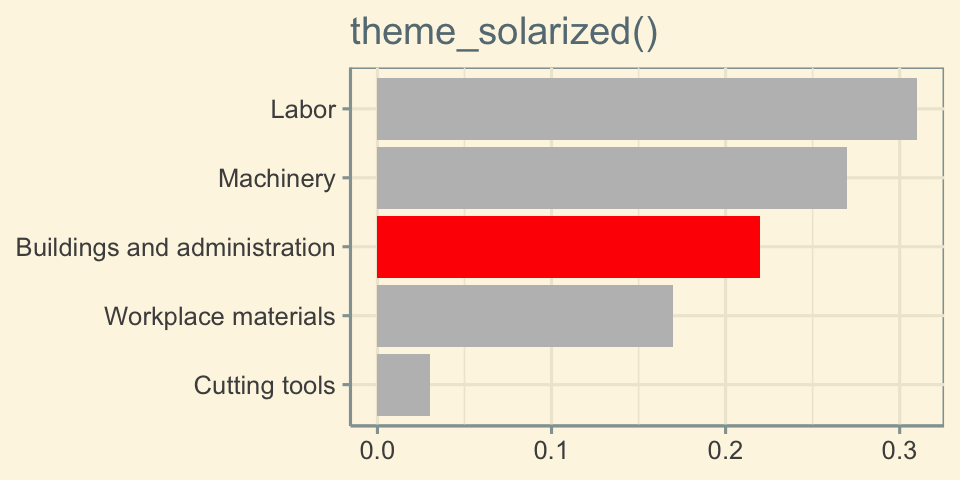

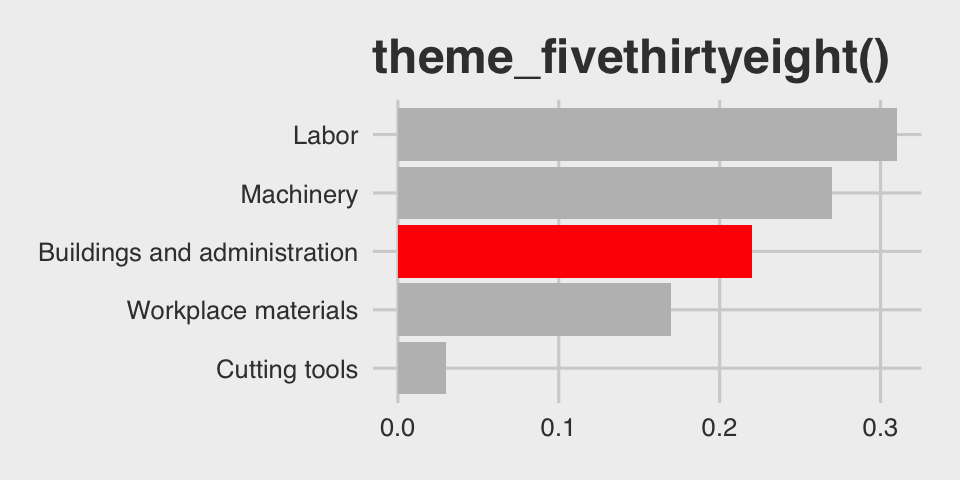

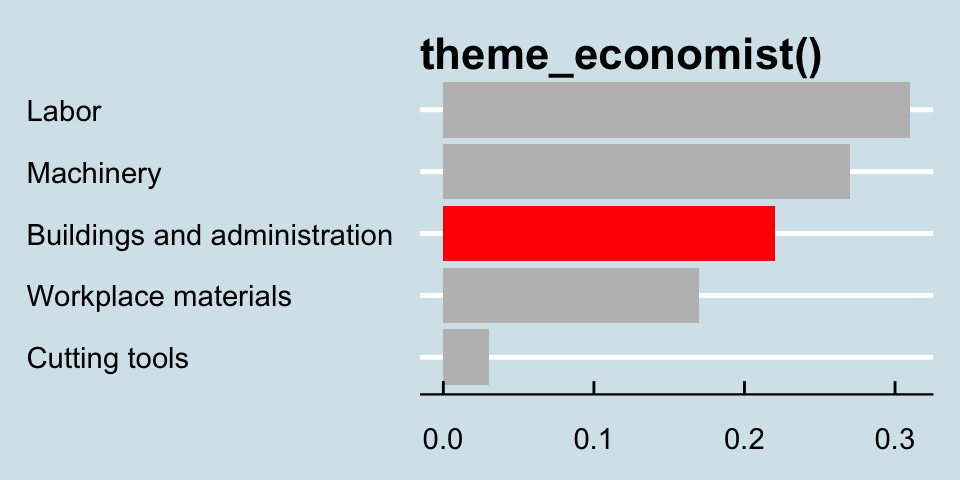

Go beyond ggplot2 themes – ggthemes

Tell a story

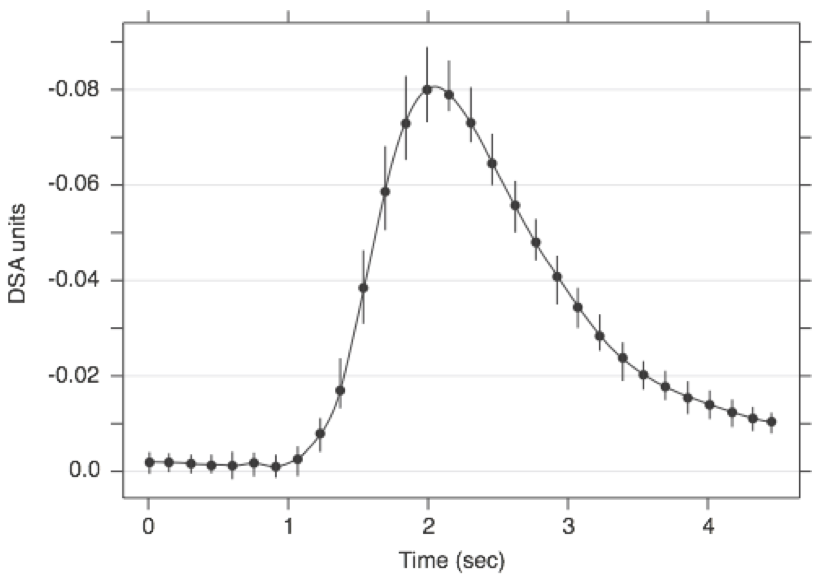

Leave out non-story details

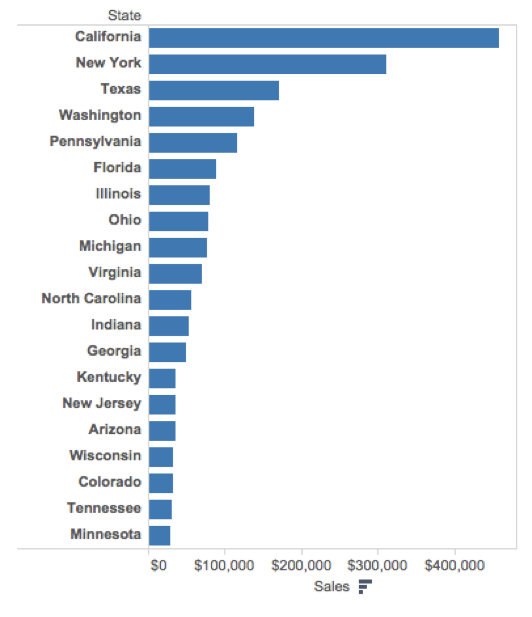

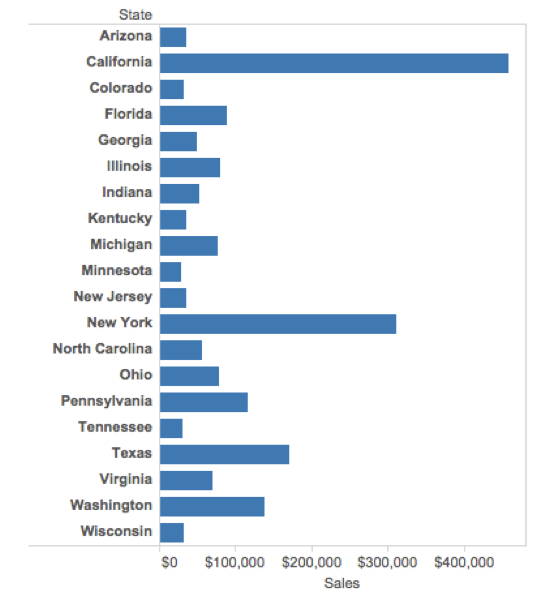

Order matters

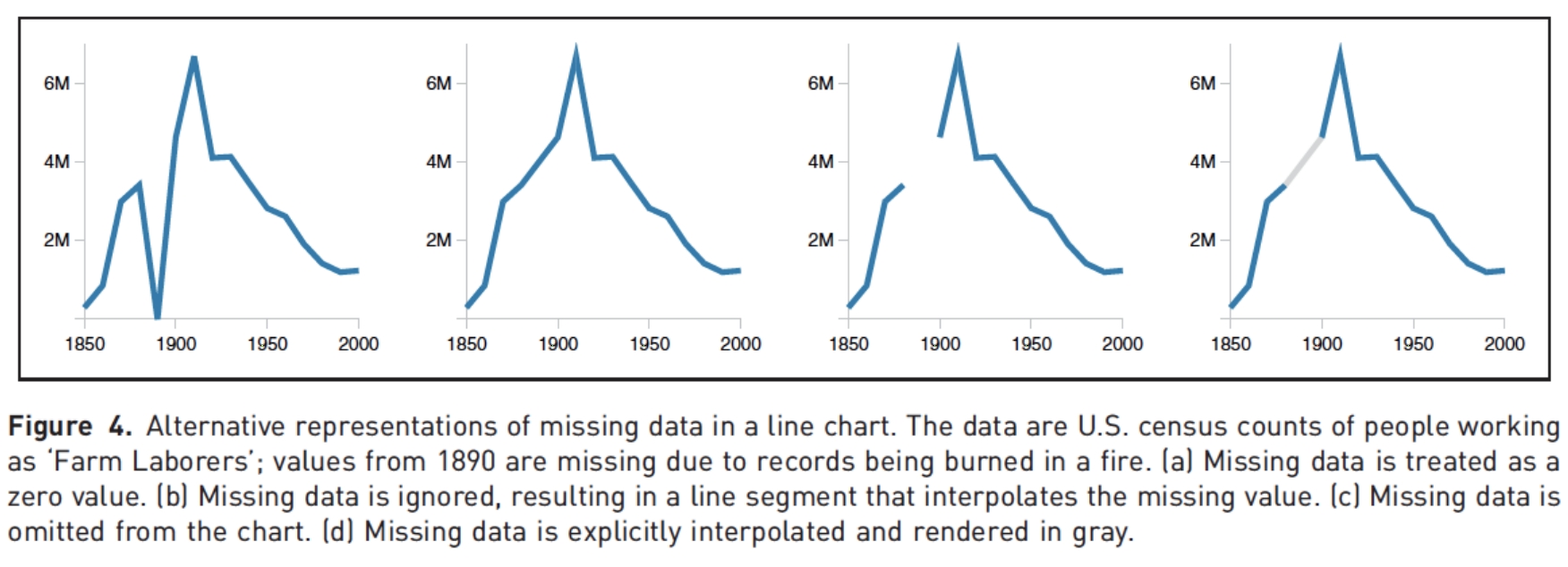

Clearly indicate missing data

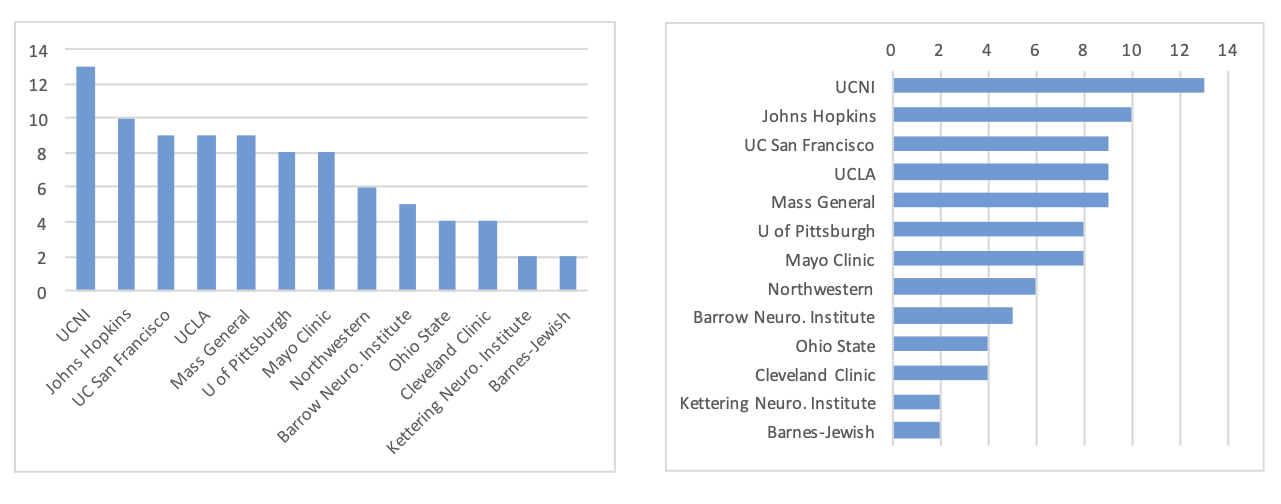

Reduce cognitive load

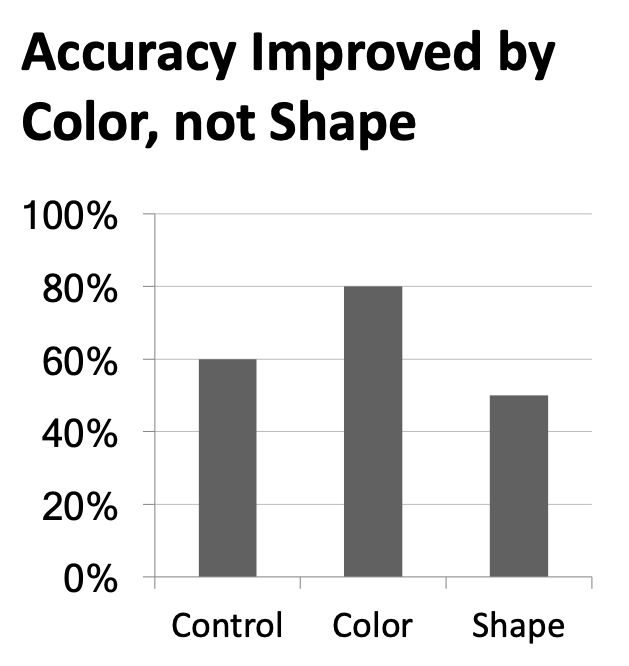

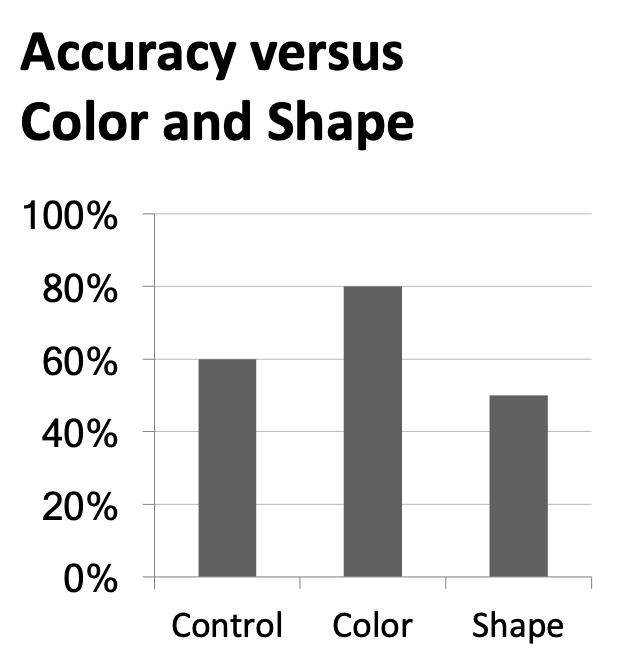

Use descriptive titles

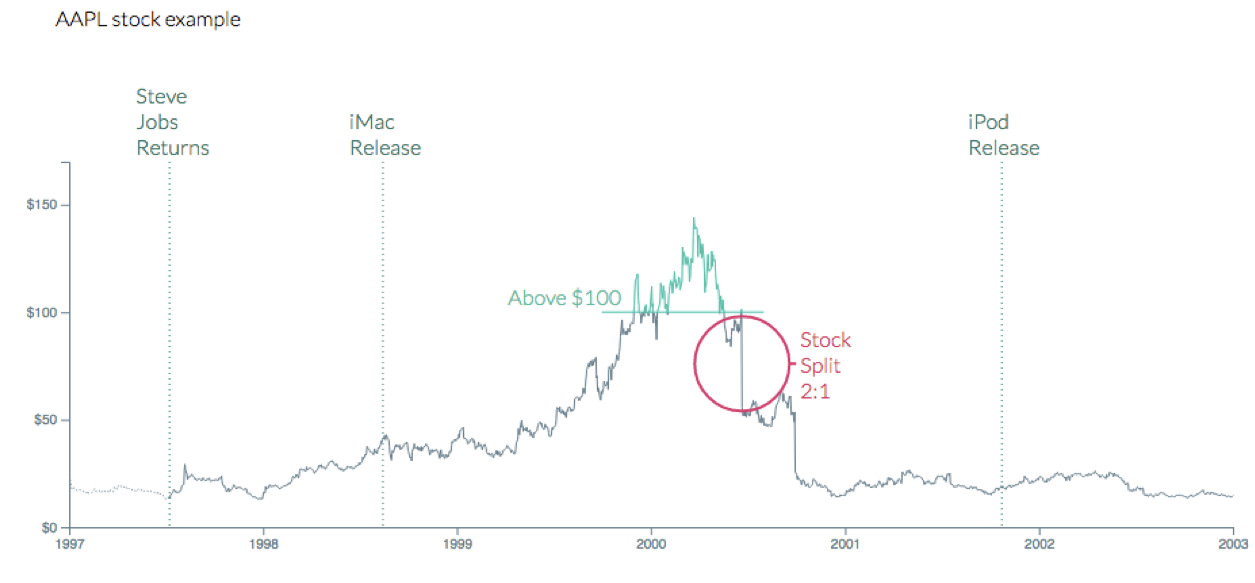

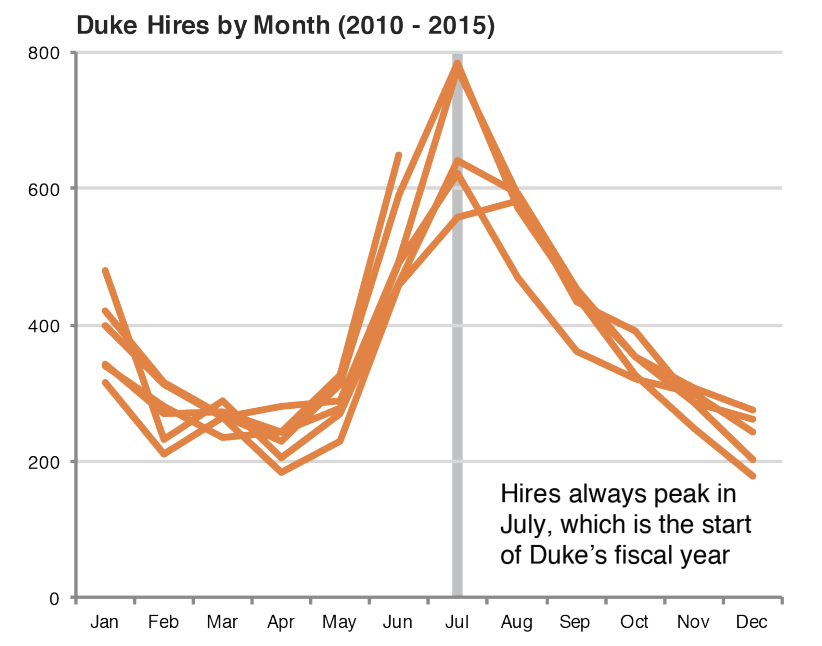

Annotate figures

Plot sizing and layout

Sample plots

p_hist <- ggplot(mtcars, aes(x = mpg)) +
  geom_histogram(binwidth = 2)

p_text <- mtcars |>
  rownames_to_column() |>
  ggplot(aes(x = disp, y = mpg)) +
  geom_text_repel(aes(label = rowname)) +
  coord_cartesian(clip = "off")

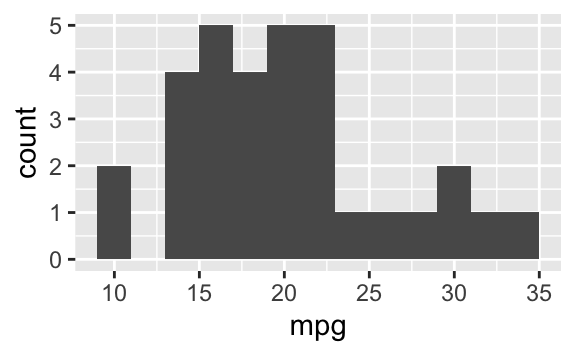

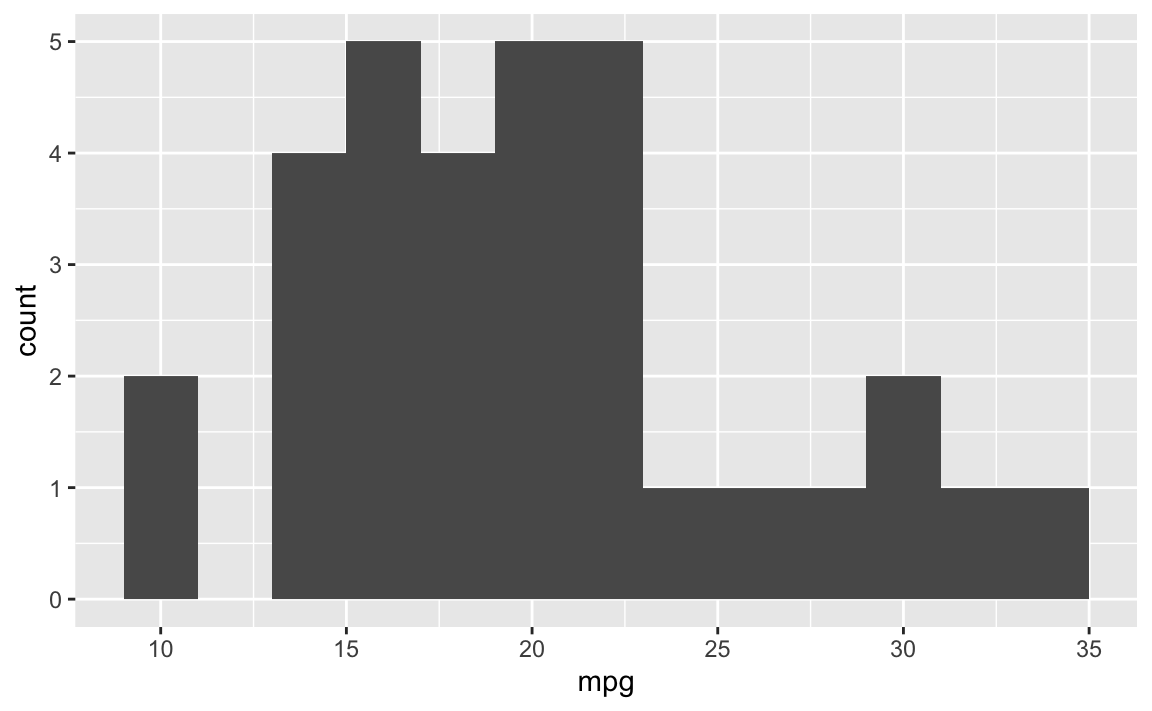

Small fig-width

For a zoomed-in look

```{r}
#| fig-width: 3
#| fig-asp: 0.618

p_hist
```

Large fig-width

For a zoomed-out look

```{r}
#| fig-width: 6
#| fig-asp: 0.618

p_hist
```

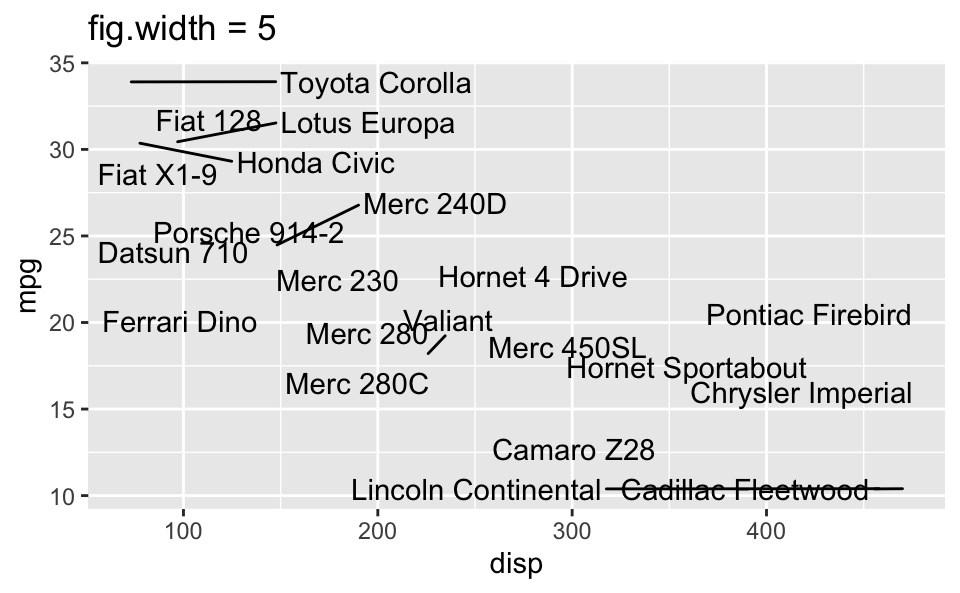

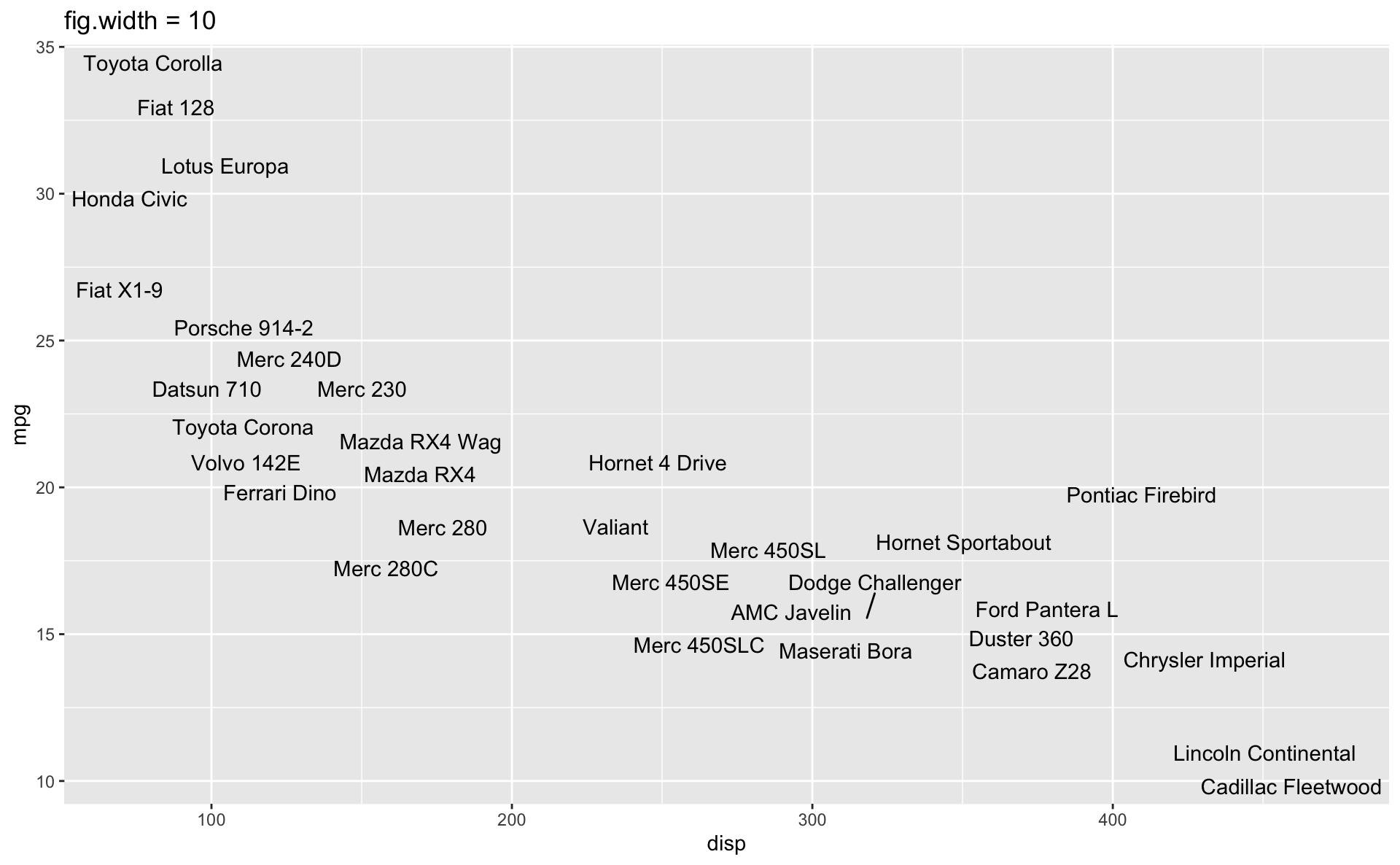

fig-width affects text size

Multiple plots on a slide

First, ask yourself, must you include multiple plots on a slide? For example, is your narrative about comparing results from two plots?

  • If no, then don’t! Move the second plot to to the next slide!

  • If yes, use columns and sequential reveal.

Quarto

Writing your project report with Quarto

  • Figure sizing: fig-width, fig-height, etc. in code chunks.

  • Figure layout: layout-ncol for placing multiple figures in a chunk.

  • Further control over figure layout with the patchwork package.

  • Chunk options around what makes it in your final report: message, echo, etc.

  • Cross referencing figures and tables.

  • Adding footnotes and citations.

Cross referencing figures

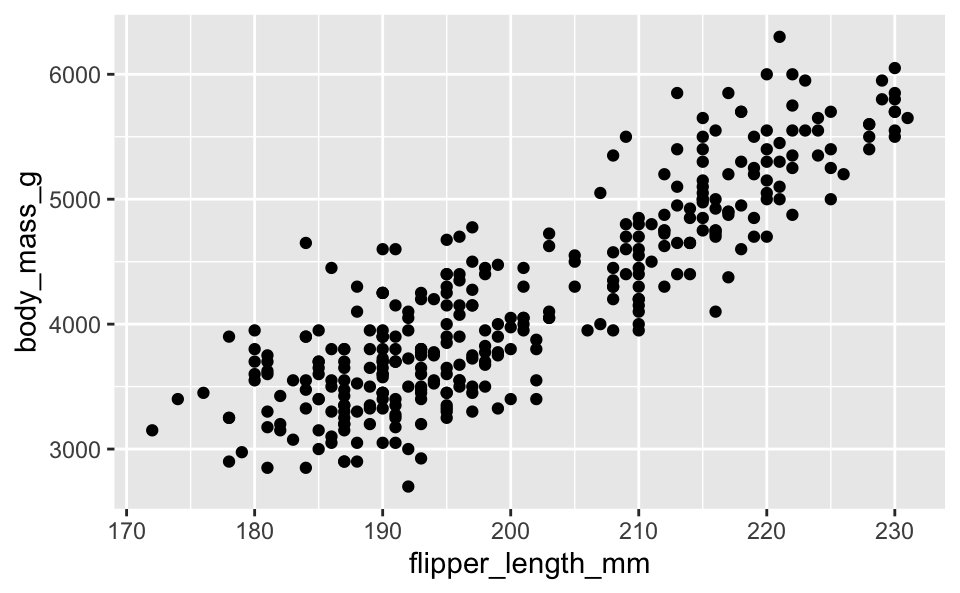

As seen in Figure 1, there is a positive and relatively strong relationship between body mass and flipper length of penguins.

ggplot(penguins, aes(x = flipper_length_mm, y = body_mass_g)) +
  geom_point()
Figure 1: The relationship between body mass and flipper length of penguins.
As seen in @fig-penguins, there is a positive and relatively strong relationship between body mass and flipper length of penguins.

```{r}
#| label: fig-penguins

ggplot(penguins, aes(x = flipper_length_mm, y = body_mass_g)) +
  geom_point()
```

Cross referencing tables

The regression output is shown in Table 1.

penguins_fit <- linear_reg() |>
  fit(body_mass_g ~ flipper_length_mm, data = penguins)

tidy(penguins_fit) |>
  knitr::kable(digits = 3)
Table 1: The regression output for predicting body mass from flipper length of penguins.
term estimate std.error statistic p.value
(Intercept) -5780.831 305.815 -18.903 0
flipper_length_mm 49.686 1.518 32.722 0
The regression output is shown in @tbl-penguins-lm.

```{r}
#| label: tbl-penguins-lm
#| tbl-cap: The regression output for predicting body mass from flipper length of penguins.

penguins_fit <- linear_reg() |>
  fit(body_mass_g ~ flipper_length_mm, data = penguins)

tidy(penguins_fit) |>
  knitr::kable(digits = 3)
```

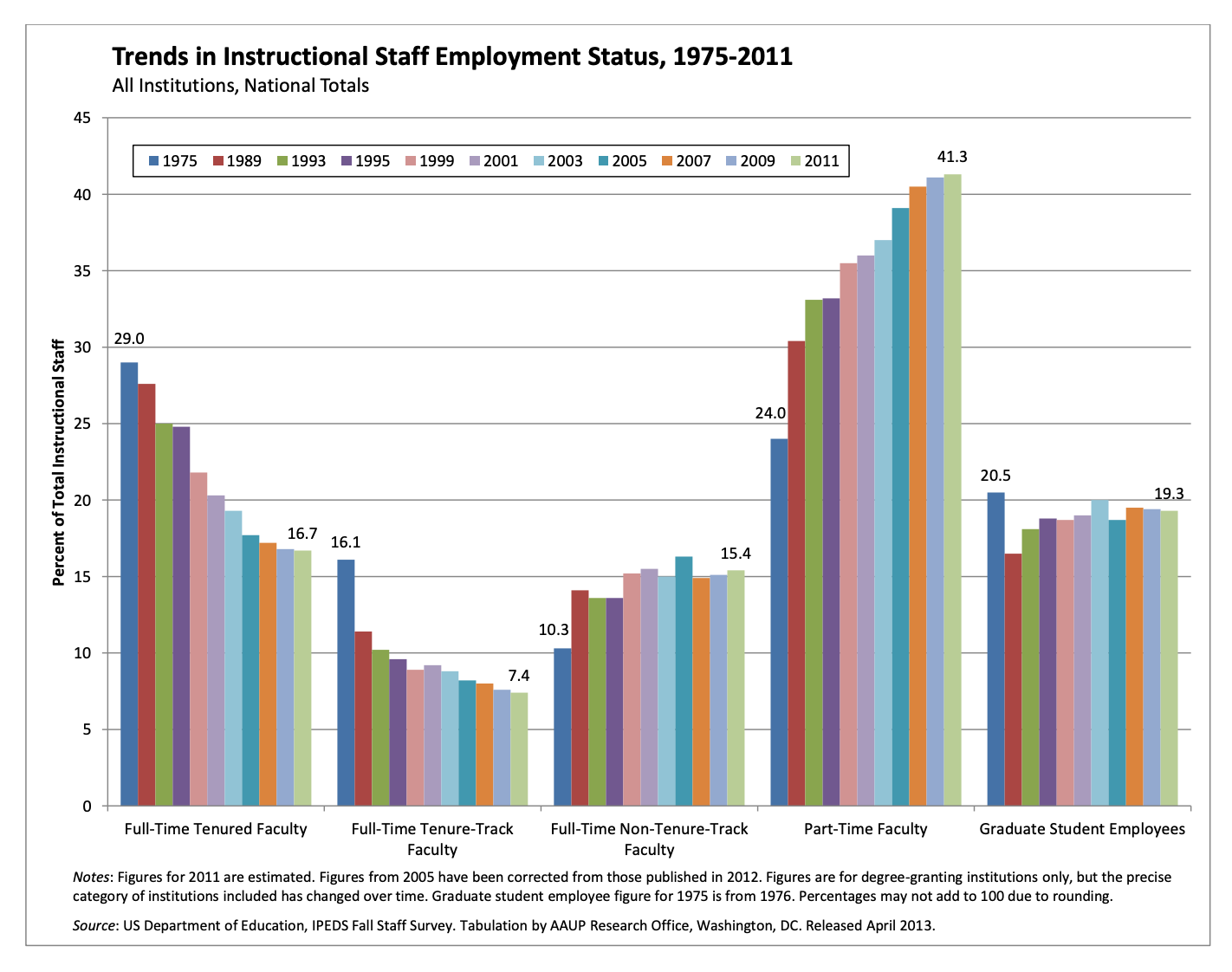

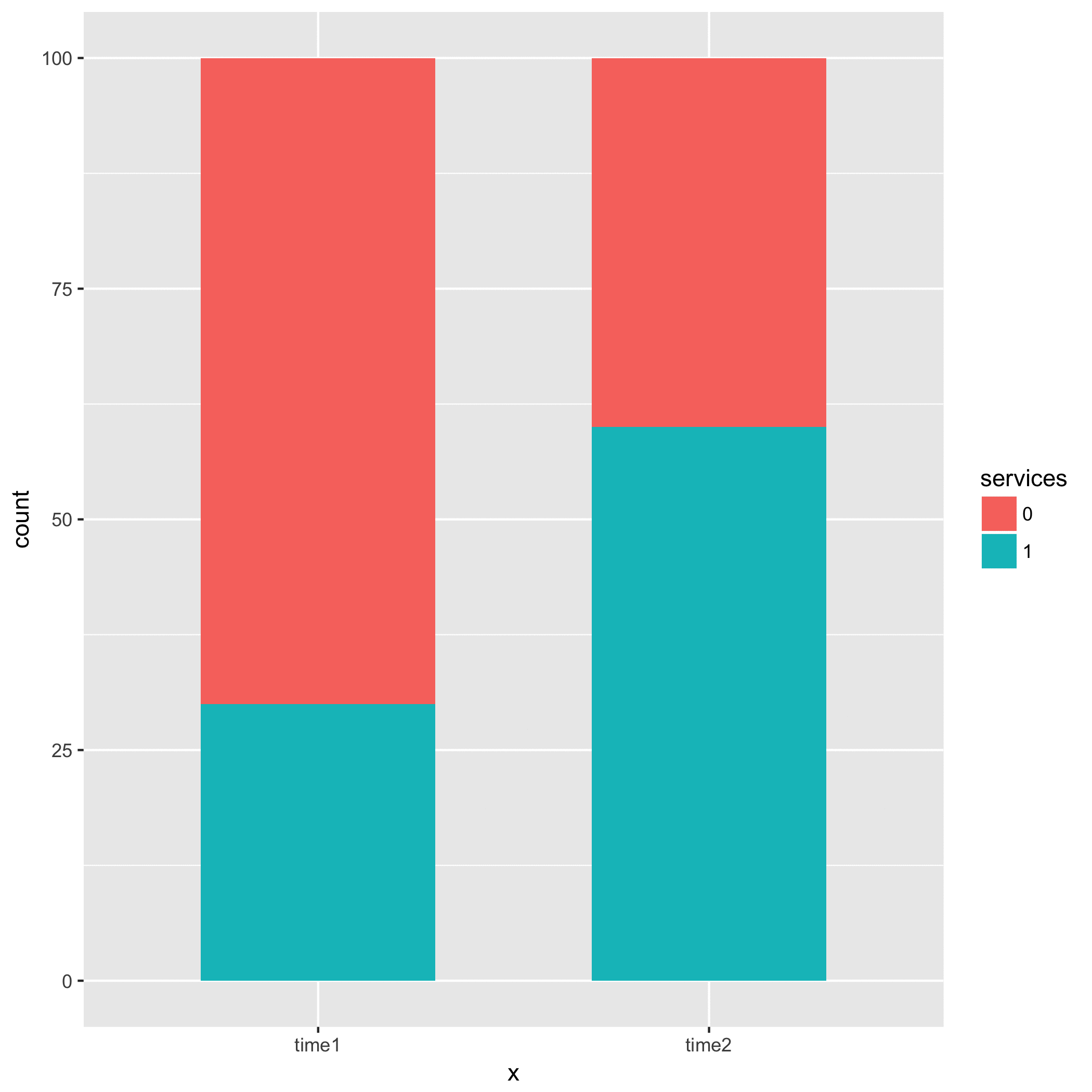

Take A Sad Plot & Make It Better

Going the extra mile

ae-19-effective-dataviz

  • Go to your ae project in RStudio.

  • If you haven’t yet done so, make sure all of your changes up to this point are committed and pushed, i.e., there’s nothing left in your Git pane.

  • If you haven’t yet done so, click Pull to get today’s application exercise file: ae-19-effective-dataviz.qmd.

  • Work through the application exercise in class, and render, commit, and push your edits.

Data prep

Code
library(tidyverse)
library(scales)

staff <- read_csv("data/instructional-staff.csv")

staff_long <- staff |>
  pivot_longer(
    cols = -faculty_type, names_to = "year",
    values_to = "percentage"
  ) |>
  mutate(
    percentage = as.numeric(percentage),
    faculty_type = fct_relevel(
      faculty_type,
      "Full-Time Tenured Faculty",
      "Full-Time Tenure-Track Faculty",
      "Full-Time Non-Tenure-Track Faculty",
      "Part-Time Faculty",
      "Graduate Student Employees"
    ),
    year = as.numeric(year),
    faculty_type_color = if_else(faculty_type == "Part-Time Faculty", "firebrick3", "gray40")
  )

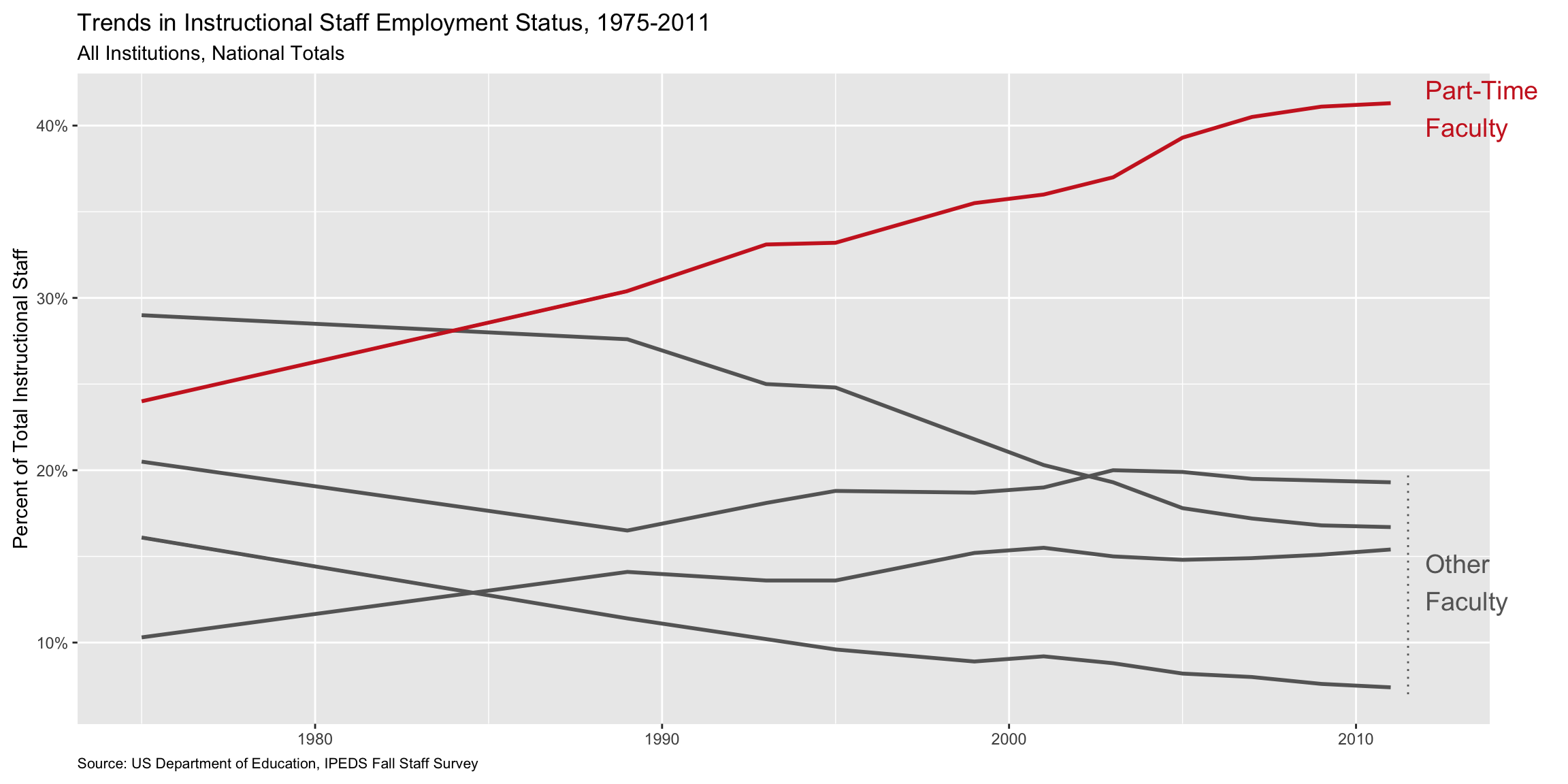

Pick a purpose

Code
p <- ggplot(
  staff_long,
  aes(
    x = year,
    y = percentage,
    color = faculty_type_color, group = faculty_type
    )
  ) +
  geom_line(linewidth = 1, show.legend = FALSE) +
  labs(
    x = NULL,
    y = "Percent of Total Instructional Staff",
    color = NULL,
    title = "Trends in Instructional Staff Employment Status, 1975-2011",
    subtitle = "All Institutions, National Totals",
    caption = "Source: US Department of Education, IPEDS Fall Staff Survey"
  ) +
  scale_y_continuous(labels = label_percent(accuracy = 1, scale = 1)) +
  scale_color_identity() +
  theme(
    plot.caption = element_text(size = 8, hjust = 0),
    plot.margin = margin(0.1, 0.6, 0.1, 0.1, unit = "in")
  ) +
  coord_cartesian(clip = "off") +
  annotate(
    geom = "text",
    x = 2012, y = 41, label = "Part-Time\nFaculty",
    color = "firebrick3", hjust = "left", size = 5
  ) +
  annotate(
    geom = "text",
    x = 2012, y = 13.5, label = "Other\nFaculty",
    color = "gray40", hjust = "left", size = 5
  ) +
  annotate(
    geom = "segment",
    x = 2011.5, xend = 2011.5,
    y = 7, yend = 20,
    color = "gray40", linetype = "dotted"
  )

p

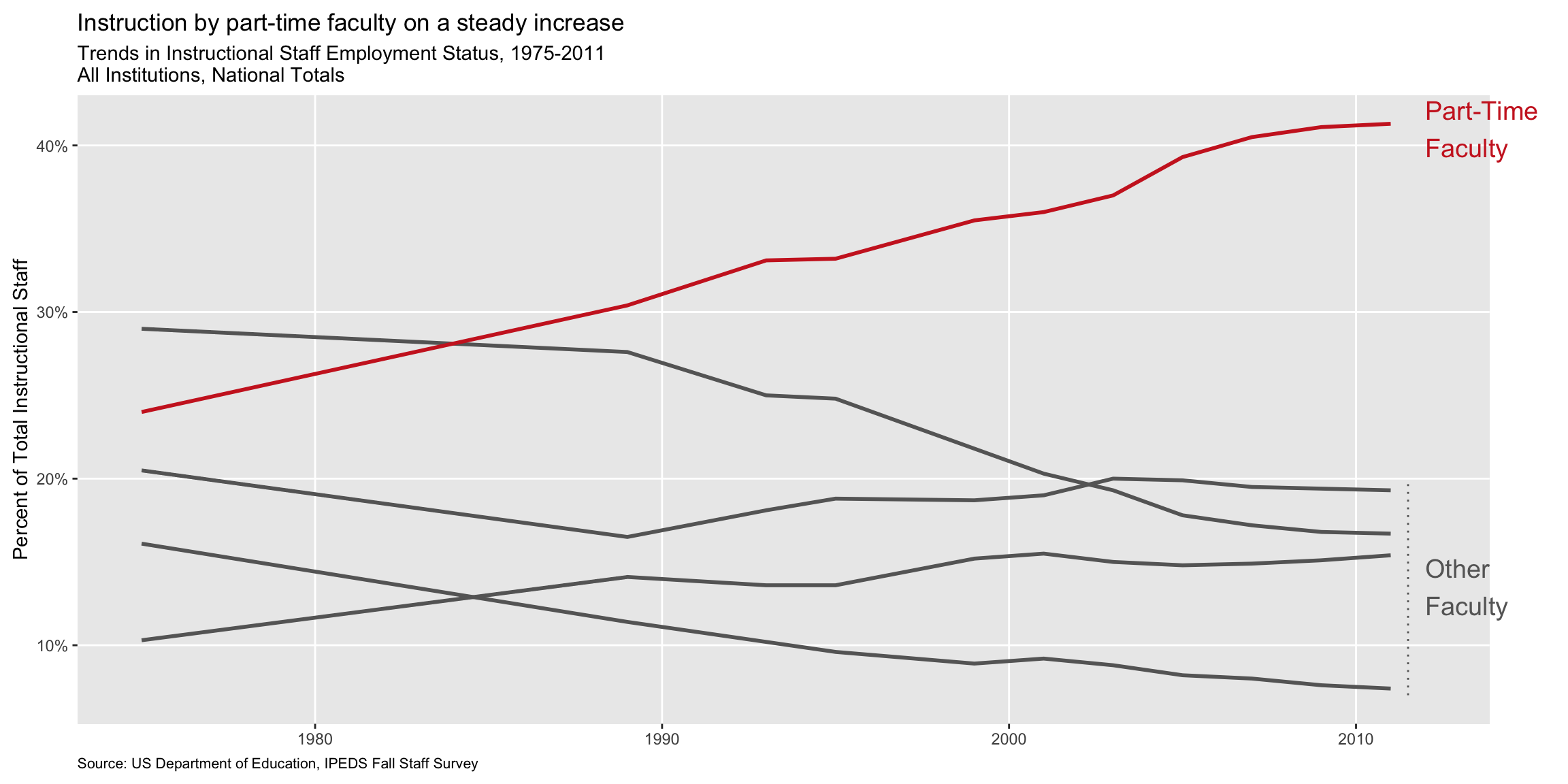

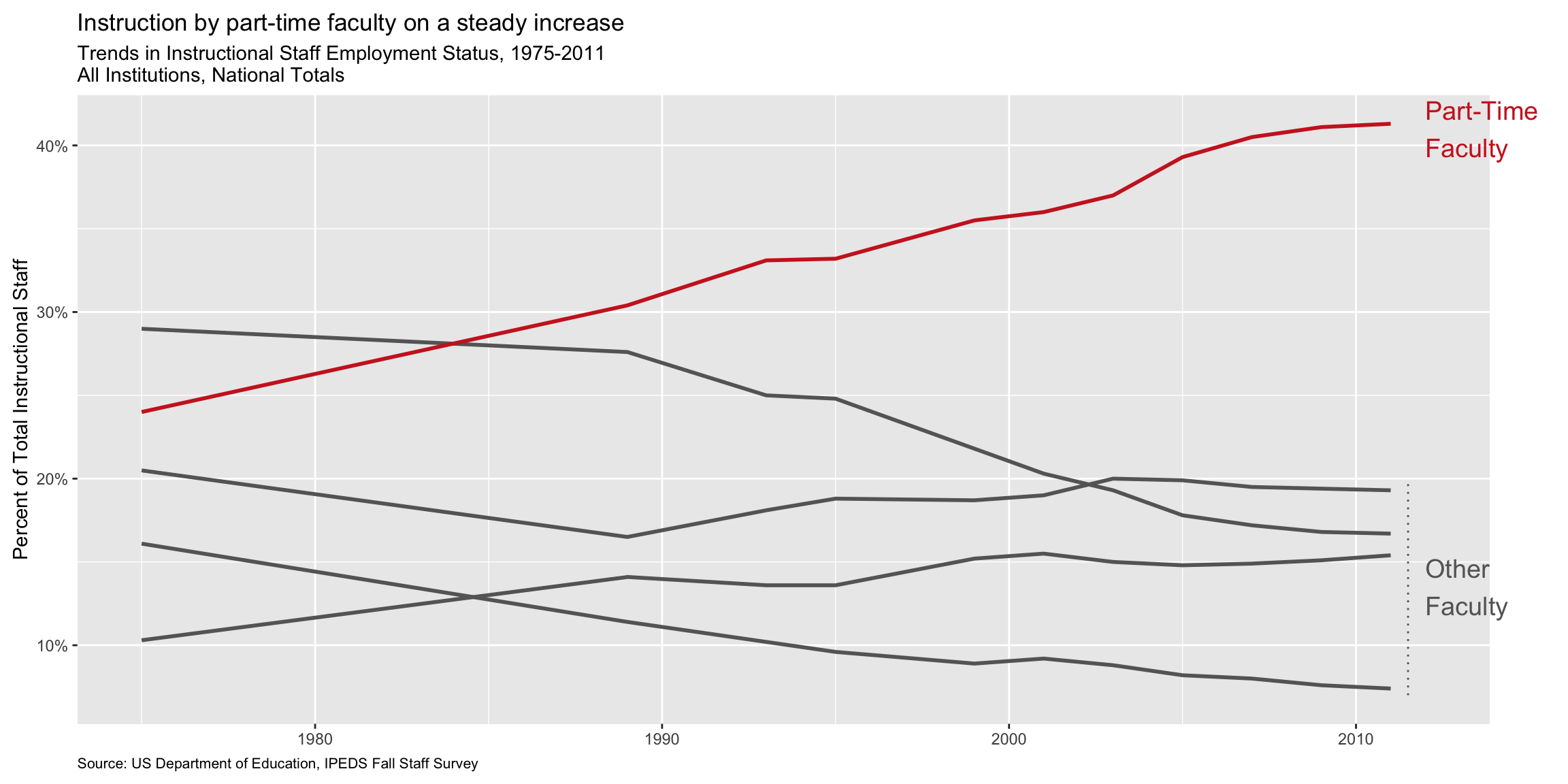

Use labels to communicate the message

Code
p +
  labs(
    title = "Instruction by part-time faculty on a steady increase",
    subtitle = "Trends in Instructional Staff Employment Status, 1975-2011\nAll Institutions, National Totals",
    caption = "Source: US Department of Education, IPEDS Fall Staff Survey",
    y = "Percent of Total Instructional Staff",
    x = NULL
  )

Simplify

Code
p +
  labs(
    title = "Instruction by part-time faculty on a steady increase",
    subtitle = "Trends in Instructional Staff Employment Status, 1975-2011\nAll Institutions, National Totals",
    caption = "Source: US Department of Education, IPEDS Fall Staff Survey",
    y = "Percent of Total Instructional Staff",
    x = NULL
  ) +
  theme(panel.grid.minor = element_blank())

Summary

  • Represent percentages as parts of a whole
  • Place variables representing time on the x-axis when possible
  • Pay attention to data types, e.g., represent time as time on a continuous scale, not years as levels of a categorical variable
  • Prefer direct labeling over legends
  • Use accessible colors
  • Use color to draw attention
  • Pick a purpose and label, color, annotate for that purpose
  • Communicate your main message directly in the plot labels
  • Simplify before you call it done (a.k.a. “Before you leave the house, look in the mirror and take one thing off”)
